RV24AF-10-15F-A10K 24mm D-Shaft Potentiometer

RV24AF-10-15F-A10K Description

POTENTIOMETERS 24mm Rotary Type, Metal Shaft Series Application TV/Video, Audio, Home appliance, Industrial control .
3/8’’x0.

RV24AF-10-15F-A10K Applications

* Specification Total Rotational Angle Maximum Operating Voltage Insulation Resistance Dielectric Strength Rotational Torque Rotational Stop Strength of the Shaft Rotation Life 300±5 250V AC 100MΩ at DC500V AC 500V for 1 minute 20-200 gf. cm 6kgf for 60 sec 15,000 cycles
* How to order RV24

📥 Download Datasheet

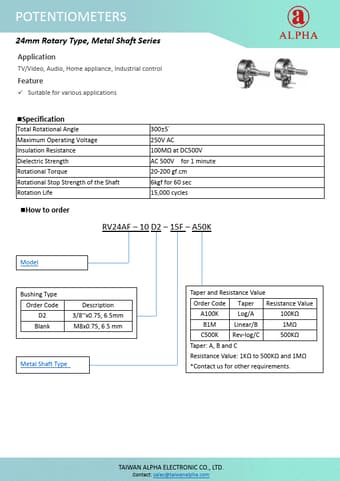

Preview of RV24AF-10-15F-A10K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RV24AF-10-15F-A10K
Manufacturer
ALPHA
File Size
628.83 KB
Datasheet
RV24AF-10-15F-A10K-ALPHA.pdf
Description
24mm D-Shaft Potentiometer
