APG005N03D7 N-Channel Enhancement Mosfet

APG005N03D7 Description

APG005N03D7 N-Channel Enhancement Mosfet .

APG005N03D7 Features

* 30V,300A RDS（ON）

APG005N03D7 Applications

* High power inverter system
* LCD TV appliances
* LCDM appliances Package Marking and Ordering Information Device Marking Device Device Package G005N03D7 APG005N03D7 TO-263-7 Reel Size - 4 123 567 TO-263-7 Tape width - Quantity (PCS) 800 ABSOLUTE MAXIMUM RATINGS (TJ=25℃ unles

📥 Download Datasheet

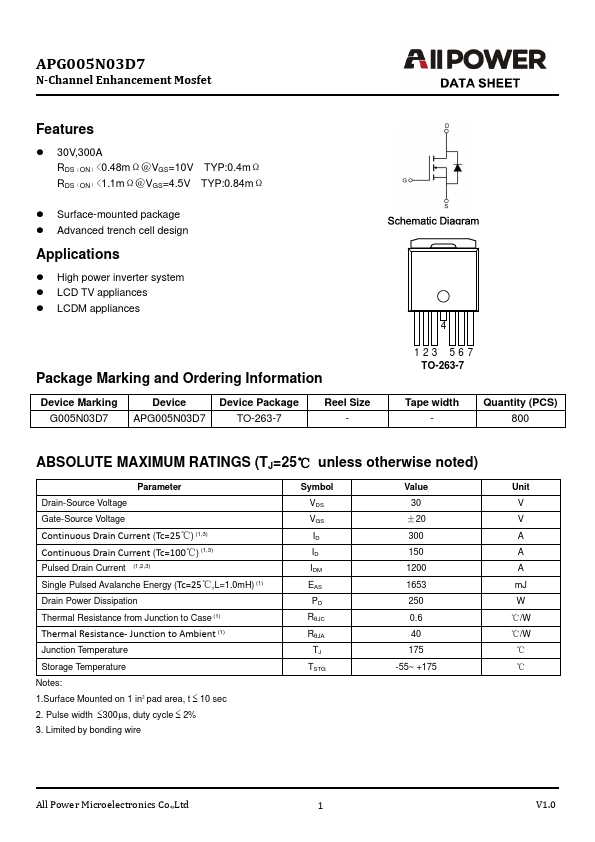

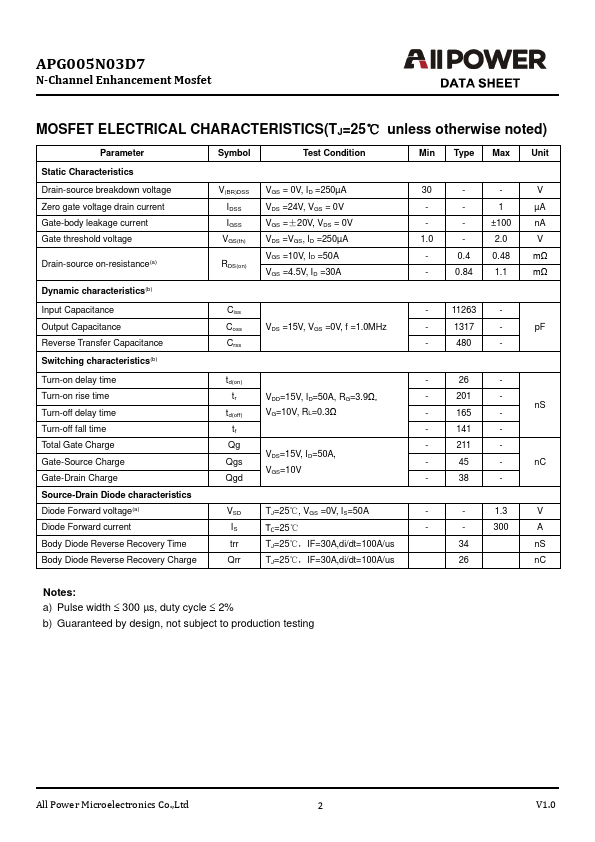

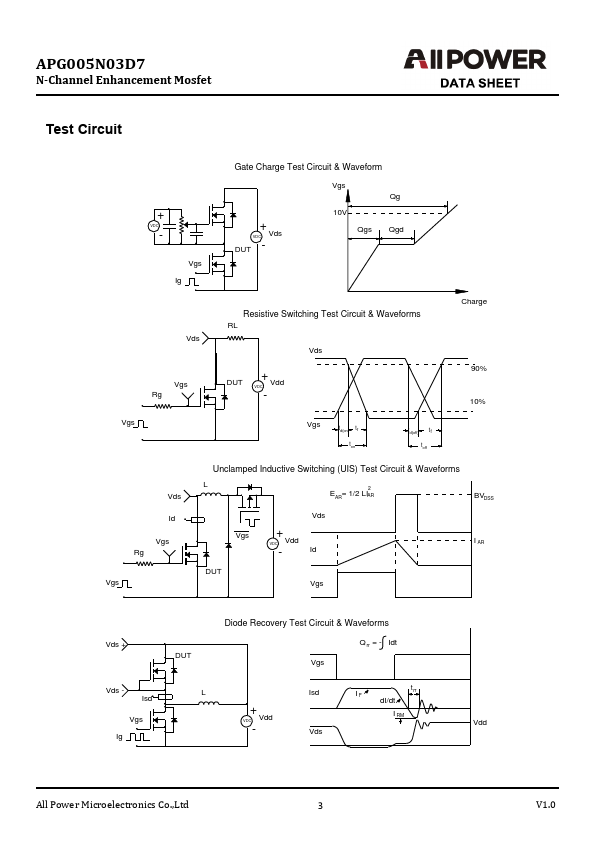

APG005N03D7 Datasheet Preview — Preview of APG005N03D7 PDF

Datasheet Details

Part number: APG005N03D7
Manufacturer: ALLPOWER
File Size: 1.00 MB
Datasheet: APG005N03D7-ALLPOWER.pdf
Description: N-Channel Enhancement Mosfet
