CZ-3701 Accurate Coreless Current Sensor

AKM

Description

[CZ-3701] Clearance/Creepage 8mm CZ-3701 60Arms Accurate Coreless Current Sensor 1.General .
CZ-3701 is an open-type current sensor using Hall sensors, which outputs the analog voltage proportional to the AC/DC current.

📥 Download Datasheet

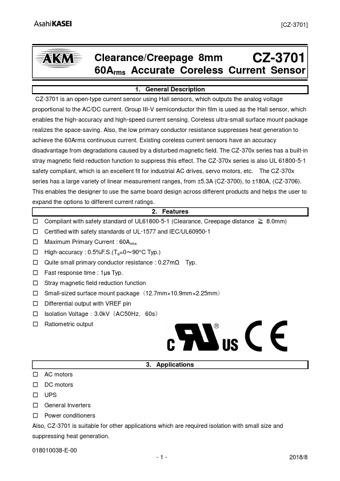

CZ-3701 Datasheet Preview — Preview of CZ-3701 PDF

Datasheet Specifications

Part number: CZ-3701
Manufacturer: AKM
File Size: 658.59 KB
Datasheet: CZ-3701-AKM.pdf
Description: Accurate Coreless Current Sensor

Features

* Compliant with safety standard of UL61800-5-1 (Clearance, Creepage distance ≧ 8.0mm)
* Certified with safety standards of UL-1577 and IEC/UL60950-1
* Maximum Primary Current : 60Arms
* High-accuracy : 0.5%F. S. (Ta=0～90°C Typ. )
* Quite small primary conductor

Applications

* AC motors
* DC motors
* UPS
* General Inverters
* Power conditioners Also, CZ-3701 is suitable for other applications which are required isolation with small size and suppressing heat generation. 018010038-E-00 -1- 2018/8 [CZ-3701] 4. Table of Contents 1
