AP1150ADS13 - 14V Input / 200mA Output LDO Regulator

General Description

The AP1150ADSxx is a low dropout linear regulator with ON/OFF control, which can supply 200mA load current.

The IC is an integrated circuit with a silicon monolithic bipolar structure.

The output voltage, trimmed with high accuracy, is available from 1.3 to 9.5V in 0.1V steps.

📥 Download Datasheet

Datasheet Details

Part number AP1150ADS13
Manufacturer AKM
File Size 558.39 KB
Description 14V Input / 200mA Output LDO Regulator
Datasheet download datasheet AP1150ADS13 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AP1156 TRANSFORMERS apx
AP110N03D 30V N-Channel Enhancement Mode MOSFET APM
AP1110 2.4 - 2.5 GHz Power Amplifier RFIC
AP1115 0.6A LOW DROPOUT POSITIVE ADJUSTABLE OR FIXED-MODE REGULATOR Diodes Incorporated
AP1115 0.6A Low Dropout Positive Adjustable or Fixed-Mode Regulator Anachip

Other Datasheets by AKM

Part Number Description
AP1150ADS13 14V Input / 200mA Output LDO Regulator
AP1150ADS14 14V Input / 200mA Output LDO Regulator
AP1150ADS15 14V Input / 200mA Output LDO Regulator
AP1150ADS16 14V Input / 200mA Output LDO Regulator
AP1150ADS17 14V Input / 200mA Output LDO Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

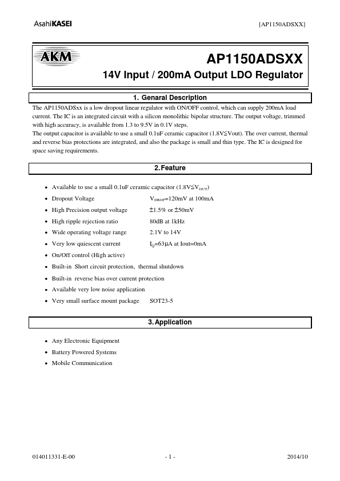

[AP1150ADSXX] AP1150ADSXX 14V Input / 200mA Output LDO Regulator 1. Genaral Description The AP1150ADSxx is a low dropout linear regulator with ON/OFF control, which can supply 200mA load current. The IC is an integrated circuit with a silicon monolithic bipolar structure. The output voltage, trimmed with high accuracy, is available from 1.3 to 9.5V in 0.1V steps. The output capacitor is available to use a small 0.1uF ceramic capacitor (1.8VVout). The over current, thermal and reverse bias protections are integrated, and also the package is small and thin type. The IC is designed for space saving requirements. 2. Feature  Available to use a small 0.1uF ceramic capacitor (1.8VVOUT)  Dropout Voltage VDROP=120mV at 100mA  High Precision output voltage 1.
