AK4955 - 24bit Stereo CODEC

AK4955 Description

[AK4955] AK4955 24bit Stereo CODEC with MIC/SPK/Cap-less VIDEO-AMP/ LDO & DSP GENERAL .
The AK4955 is a 24bit stereo CODEC with a microphone amplifier, speaker amplifier, video amplifier, LDO, and DSP.

AK4955 Features

* 1. Recording Functions
* Stereo Single-ended input with two Selectors
* MIC Amplifier (+24dB/+21dB/+18dB/+16dB/+14dB/+11dB/+8dB/+5dB/0dB)
* Digital ALC (Automatic Level Control) (Setting Range: +36dB ∼
* 54dB, 0.375dB Step)
* ADC Performance: S/(N+D): 81dB, DR,

📥 Download Datasheet

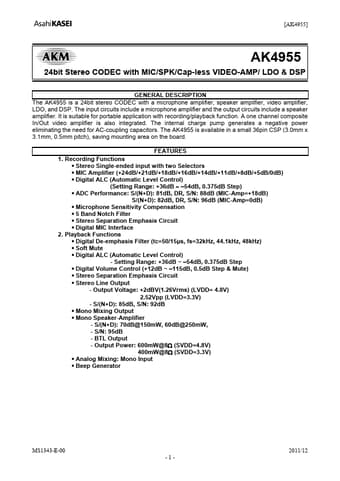

Preview of AK4955 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK4955
Manufacturer
AKM
File Size
1.07 MB
Datasheet
AK4955-AKM.pdf
Description
24bit Stereo CODEC
