AK4493 Quality Oriented 32-Bit 2ch DAC

AK4493 Description

[AK4493] AK4493 Quality Oriented 32-Bit 2ch DAC 1.General .
The AK4493 is a new generation Premium 32-bit 2ch DAC with VELVET SOUNDTM technology, achieving industry’s leading level low distortion characteristic.

AK4493 Features

* THD+N: -113dB
* DR, S/N: 123dB (2Vrms), 125dB (Large Amplitude Mode), 126dB (Mono Mode)
* 256 Times

AK4493 Applications

* The AK4493 accepts up to 768kHz PCM data and 22.4MHz DSD data, ideal for high-resolution audio source playback that is becoming widespread in network audio, USB-DAC, etc. Application: AV Receivers, CD/SACD Players, Network Audios, USB DACs, USB Headphones, Sound Plates/Bars, Measurement Equipment,

📥 Download Datasheet

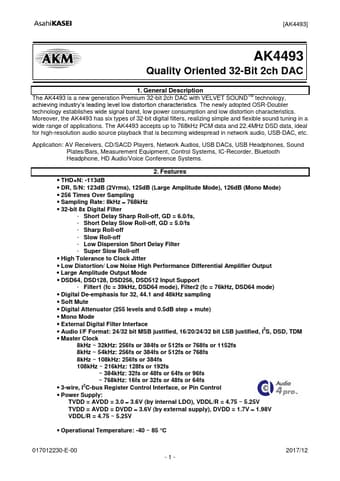

Preview of AK4493 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK4493
Manufacturer
AKM
File Size
1.79 MB
Datasheet
AK4493-AKM.pdf
Description
Quality Oriented 32-Bit 2ch DAC
