AK2970 - Zero Drift operational amplifiers

AKM

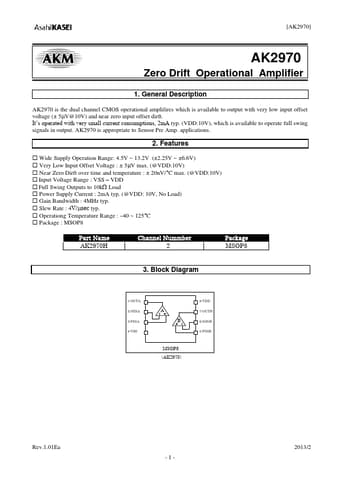

AK2970 Datasheet Preview — Preview of AK2970 PDF

Datasheet Details

Part number	AK2970
Manufacturer	AKM
File Size	502.61 KB
Description	Zero Drift operational amplifiers
Datasheet	AK2970-AKM.pdf

AK2970 Product details

Description

AK2970 is the dual channel CMOS operational amplifires which is available to output with very low input offset voltage (± 5V@10V) and near zero input offset dirft.

Features

 Wide Supply Operation Range: 4.5V ~ 13.2V (±2.25V ~ ±6.6V)  Very Low Input Offset Voltage : ± 5V max. (@VDD:10V)  Near Zero Dirft over time and temperature : ± 20nV/C max. (@VDD:10V)  Input Voltage Range : VSS.
VDD  Full Swing Outputs to 10k Load  Power Supply Current : 2mA typ. (@VDD: 10V, No Load)  Gain Bandwidth : 4MHz typ.  Slew Rate : 4V/sec typ.  Operationg Temperature Range : -40 ~ 125C  Package : MSOP8 Part Name AK2970H Channel Nummber 2 Package MSOP8 3. Block D.
