AK1221 - 3500MHz High Linearity Mixer

AKM

AK1221 Datasheet Preview — Preview of AK1221 PDF

Datasheet Details

Part number	AK1221
Manufacturer	AKM
File Size	519.53 KB
Description	3500MHz High Linearity Mixer
Datasheet	AK1221-AKM.pdf

AK1221 Product details

Description

________________________________ ______ 5 Absolute Maximum Ratings________________________________ ______ 7 Recommended Operating Range ________________________________ _ 7 Electrical Characteristics ________________________________ ________ 8 10. Typical Performance ________________________________ ___________ 9 11. Typical Evaluation Board Schematic _____________________________ 16 12. LSI Interface Schematic ________________________________ ________ 18 13. Outer Dimensions __________________

Features

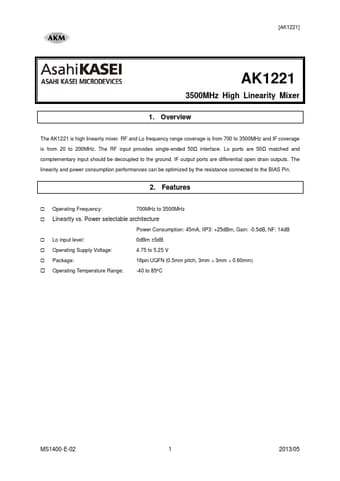

  Operating Frequency: 700MHz to 3500MHz Linearity vs. Power selectable architecture Power Consumption: 45mA, IIP3: +25dBm, Gain: -0.5dB, NF: 14dB    Lo input level: Operating Supply Voltage: Package: Operating Temperature Range: 0dBm ±5dB 4.75 to 5.25 V 16pin UQFN (0.5mm pitch, 3mm  3mm  0.60mm) -40 to 85C  MS1400-E-02 1 2013/05 http://www. Datasheet4U. com [AK1221] 3. Table contents 1. 2. 3. 4. 5. 6. 7. 8. 9. Overview _____________________________________________________ 1.
