AHA3410C Datasheet (AHA) - 25 MBYTES/SEC SIMULTANEOUS LOSSLESS DATA COMPRESSION / DECOMPRESSION COPROCESSOR IC

AHA3410C, 25 MBYTES/SEC SIMULTANEOUS LOSSLESS DATA COMPRESSION / DECOMPRESSION COPROCESSOR IC

The coprocessor device has three external high speed synchronous data ports each capable of transferring once every 25 MHz clock.

These are a 32-bit bidirectional data port, an 8-bit Video Input Data (VID) port and a Video Output Data (VOD) port.

The 32-bit port is capable of transferring up to 100

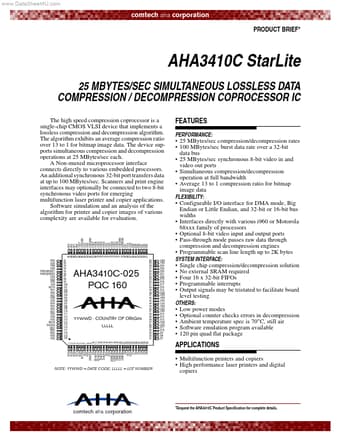

www.DataSheet4U.com comtech aha corporation PRODUCT BRIEF AHA3410C StarLite 25 MBYTES/SEC SIMULTANEOUS LOSSLESS DATA COMPRESSION / DECOMPRESSION COPROCESSOR IC The high speed compression coprocessor is a single-chip CMOS VLSI device that implements a lossless compression and decompression algorithm.

The algorithm exhibits an average compression ratio over 13 to 1 for bitmap image data.

The device supports simultaneous compression and decompression operations at 25 MBytes/sec each.

A Non-m

AHA3410C Features

* PERFORMANCE:

* 25 MBytes/sec compression/decompression rates

* 100 MBytes/sec burst data rate over a 32-bit data bus

* 25 MBytes/sec synchronous 8-bit video in and video out ports

* Simultaneous compression/decompression operation at full bandwidth

* Average
