SSCT12V21DC - Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressors

SSCT12V21DC Description

SSCTXXVXXDC SSCTXXVXXDC Series Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressors * .

SSCT12V21DC Features

* Voltage Range 12V-170V
* 5000W peak pulse power Dissipation

SSCT12V21DC Applications

* Reliable low cost construction utilizing molded plastic technique
* Response Time is Typically < 1 ns
* Uni-direction, less than 5.0ns for Bi-direction, form 0 Volts to BV min
* ESD Rating of above 16 kV per Human Body Model Symbol VRWM VBR VC IT IR IPP Parameter Working Peak Rev

📥 Download Datasheet

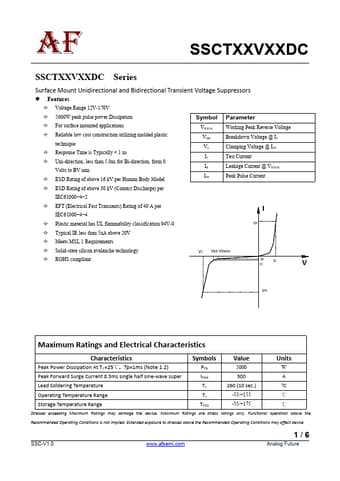

SSCT12V21DC Datasheet Preview — Preview of SSCT12V21DC PDF

Datasheet Details

Part number: SSCT12V21DC
Manufacturer: AFSEMI
File Size: 576.33 KB
Datasheet: SSCT12V21DC-AFSEMI.pdf
Description: Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressors
