SSC8030GN2 N-Channel Enhancement Mode MOSFET

SSC8030GN2 Description

SSC8030GN2 N-Channel Enhancement Mode MOSFET * .
This device uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

SSC8030GN2 Features

* VDS 30V VGS ±20V RDSon TYP 8.5mR@10V 10.5mR@4V5 ID 10A

SSC8030GN2 Applications

* Applications
* Load Switch
* PC/NB
* DCDC conversion Pin configuration Top View
* Package Information SSC-V1.0 http://www. afsemi. com http://www. Spring-Power. com 1/4 Analog Future SSC8030GN2
* Absolute Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Symb

📥 Download Datasheet

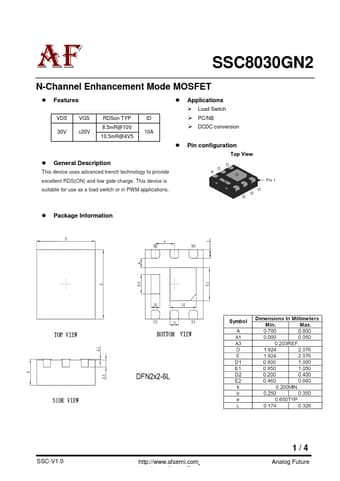

Preview of SSC8030GN2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSC8030GN2
Manufacturer
AFSEMI
File Size
313.36 KB
Datasheet
SSC8030GN2-AFSEMI.pdf
Description
N-Channel Enhancement Mode MOSFET
