AF7544M - 150mA Low Power LDO

Download the AF7544M datasheet PDF (AF7530M included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 150ma low power ldo.

Description

The AF75XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

They allow input voltages as high as 15V.

They are available with several fixed output voltages ranging from 2.1V to 6.0V.

Features

  • Low power consumption.
  • Low voltage drop.
  • Low temperature coefficient AF75XXM 150mA Low Power LDO.
  • High input voltage (up to 15V).
  • Output voltage accuracy: tolerance ±2%.
  • SOT89 and SOT23 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AF7530M-AFSEMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AF7544M
Manufacturer AFSEMI
File Size 1.12 MB
Description 150mA Low Power LDO
Datasheet download datasheet AF7544M Datasheet

📁 Similar Datasheet

  • AF7 - HF Pentode (RFT)
  • AF7 - R.F. Pentode (Philips)
  • AF7 - Pentode (Tungsram)
  • AF7 - HF Pentode (TELEFUNKEN)
  • AF7 - H.F. Penthode (Philips)
  • AF70N03 - N-Channel MOSFET (Anachip)
  • AF7115 - Synchronous Step-Down Converter (Alfa-MOS)
Other Datasheets by AFSEMI

Full PDF Text Transcription

Click to expand full text

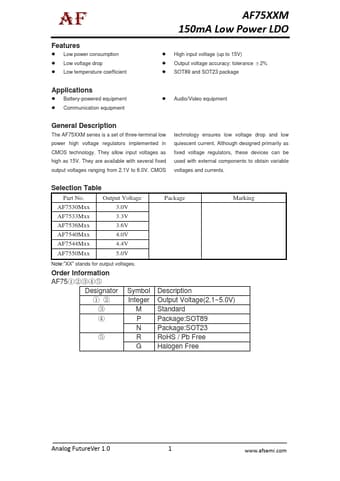

Features  Low power consumption  Low voltage drop  Low temperature coefficient AF75XXM 150mA Low Power LDO  High input voltage (up to 15V)  Output voltage accuracy: tolerance ±2%  SOT89 and SOT23 package Applications  Battery-powered equipment  Communication equipment  Audio/Video equipment General Description The AF75XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 15V. They are available with several fixed output voltages ranging from 2.1V to 6.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
