AIT25CH60H - 3 Quadrants High temperature Triacs

AIT25CH60H Description

  ADV                                                                          AIT25CH60H/80H 3 Quadrants High temperature Triacs General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

AIT25CH60H Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 25 A )
* High Commutation dv/dt
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Compliant
* Isolated heatsink mounted ,

AIT25CH60H Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at give

📥 Download Datasheet

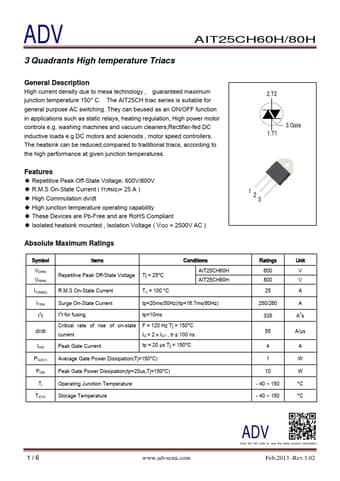

Preview of AIT25CH60H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AIT25CH60H
Manufacturer
ADV
File Size
262.70 KB
Datasheet
AIT25CH60H-ADV.pdf
Description
3 Quadrants High temperature Triacs
