AIT20CH60 - 3 Quadrants High temperature Triacs

AIT20CH60 Description

  ADV                                                                          AIT20CH60/80 3 Quadrants High temperature Triacs General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

AIT20CH60 Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 20 A )
* High Commutation dv/dt
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Compliant
* Isolated he

AIT20CH60 Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at give

📥 Download Datasheet

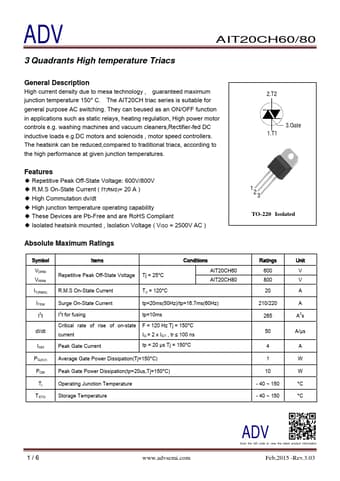

Preview of AIT20CH60 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AIT20CH60
Manufacturer
ADV
File Size
247.68 KB
Datasheet
AIT20CH60-ADV.pdf
Description
3 Quadrants High temperature Triacs
