AIS25CH60H - 3 Quadrants High temperature Triacs

Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

The AIS25CH triac series is suitable for general purpose AC switching.

They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

Features

  • Repetitive Peak Off-State Voltage: 600V/800V.
  • R. M. S On-State Current ( IT(RMS)= 25 A ).
  • High Commutation dv/dt.
  • High junction temperature operating capability.
  • These Devices are Pb-Free and are RoHS Compliant.
  • Isolated heatsink mounted ,.

📥 Download Datasheet

Datasheet Details

Part number AIS25CH60H
Manufacturer ADV
File Size 263.00 KB
Description 3 Quadrants High temperature Triacs
Datasheet download datasheet AIS25CH60H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AIS25BA 3-axis accelerometer STMicroelectronics
AIS2120SX MEMS automotive acceleration sensor STMicroelectronics
AIS2DW12 ultra-low-power 3-axis accelerometer STMicroelectronics
AIS2IH MEMS digital output motion sensor STMicroelectronics
AIS-E1-H61A Advanced Mini-ITX System Controller AAEON

Other Datasheets by ADV

Part Number Description
AIS25CH60 3 Quadrants High temperature Triacs
AIS25CH80 3 Quadrants High temperature Triacs
AIS25CH80H 3 Quadrants High temperature Triacs
AIS25C60 3 Quadrants Triacs
AIS25C60H 3 Quadrants Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

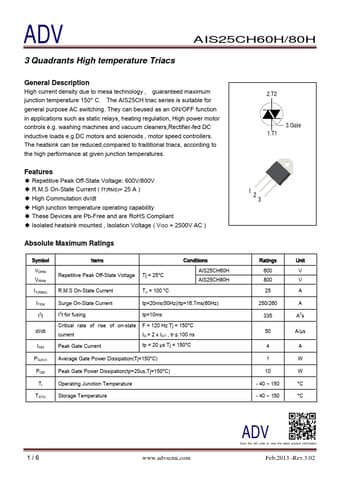

  ADV                                                                          AIS25CH60H/80H 3 Quadrants High temperature Triacs General Description High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIS25CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at given junction temperatures. Features ◆ Repetitive Peak Off-State Voltage: 600V/800V ◆ R.M.
