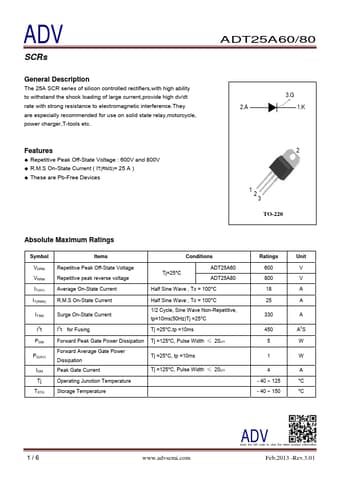

ADT25A80, ADT25A60, SCRs
The 25A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc.
3.
ADT25A80 Features
* Repetitive Peak Off-State Voltage : 600V and 800V
* R.M.S On-State Current ( IT(RMS)= 25 A )
* These are Pb-Free Devices 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak re
