ADS12A60F - SCRs

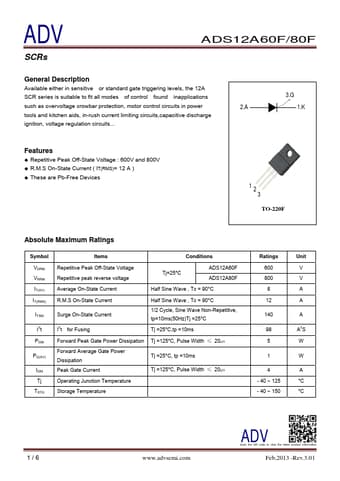

ADS12A60F Datasheet Preview — Preview of ADS12A60F PDF

Datasheet Details

Part number	ADS12A60F
Manufacturer	ADV
File Size	294.08 KB
Description	SCRs
Datasheet	ADS12A60F-ADV.pdf

ADS12A60F Product details

Description

Available either in sensitive or standard gate triggering levels, the 12A SCR series is suitable to fit all modes of control found inapplications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, in-rush current limiting circuits,capacitive discharge ignition, voltage regulation circuits 2.A 3.G 1.K

Features

Repetitive Peak Off-State Voltage : 600V and 800V.
R. M. S On-State Current ( IT(RMS)= 12 A ).
These are Pb-Free Devices 1 23 TO-220F Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage Conditions Tj=25°C ADS12A60F ADS12A80F Average On-State Current Half Sine Wave , Tc = 90°C R. M. S On-State Current Surge On-State Current I2t for Fusing Half Sine.
