AACT110W - AC Thyristor Triac power switch

Download the AACT110W datasheet PDF. This datasheet also covers the AACT108W variant, as both devices belong to the same ac thyristor triac power switch family and are provided as variant models within a single manufacturer datasheet.

General Description

Sensitive gate triac in the SOT-223 plastic package, intended for use in AC static switching and industrial control systems, driving low power highly inductive loads like solenoid,pump, fan,and micro-motor.

Key Features

  • Repetitive Peak Off-State Voltage: 800Vand1000V.
  • R. M. S On-State Current ( IT(RMS)=1A ).
  • Very high immunity to false turn-on by dV/dt.
  • Triggering in three quadrants only.
  • Pin compatible with standard triacs.
  • Safe clamping capability for low energy over-voltage transients.
  • These Devices are Pb-Free and are RoHS Compliant 1 2 3 2 SOT-223 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Volt.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AACT108W-ADV.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AACT110W
Manufacturer ADV
File Size 253.43 KB
Description AC Thyristor Triac power switch
Datasheet download datasheet AACT110W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ADV

Part Number Description
AACT110 AC Thyristor Triac power switch
AACT108 AC Thyristor Triac power switch
AACT108W AC Thyristor Triac power switch
AACT1208F AC Thyristor Triac power switch
AACT1210F AC Thyristor Triac power switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

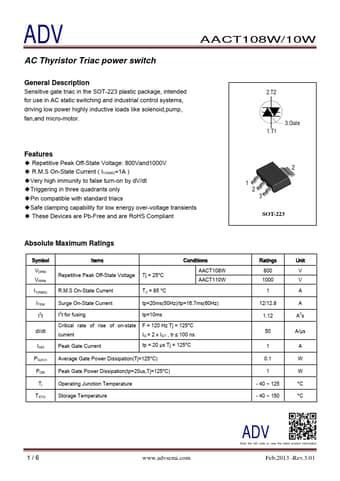

  A  DV AC Thyristor Triac power switch AACT108W/10W General Description Sensitive gate triac in the SOT-223 plastic package, intended for use in AC static switching and industrial control systems, driving low power highly inductive loads like solenoid,pump, fan,and micro-motor. 2.T2 3.Gate 1.T1 Features ◆ Repetitive Peak Off-State Voltage: 800Vand1000V ◆ R.M.S On-State Current ( IT(RMS)=1A ) ◆Very high immunity to false turn-on by dV/dt ◆Triggering in three quadrants only ◆Pin compatible with standard triacs ◆Safe clamping capability for low energy over-voltage transients ◆ These Devices are Pb-Free and are RoHS Compliant 1 2 3 2 SOT-223 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R.
