AEY3450900 - AEY EV Fuse

Download the AEY3450900 datasheet PDF. This datasheet also covers the AEY2100900 variant, as both devices belong to the same aey ev fuse family and are provided as variant models within a single manufacturer datasheet.

Description

Adler AEY series EV fuses are specially engineered and tested to provide best-in-class protection performance in protecting high power battery charging and managing systems of Electrical Vehicles and Hybrid Electrical Vehicles, up to 70 VDC in ratings from 10A to 500A.

Features

  • 70 VDC automotive fuse.
  • Rated Current: 10-500 A.
  • Operating Temperature: -40 to 125℃ degrees.
  • Rated Breaking Capacity: 2.5 kA at 70 VDC.
  • Bolt Size: M8.
  • Torque: M8:12Nꞏm.
  • Recommended fuse holder: BHR059-25-M8; BHR051-25-M8; BFR050-28-M8.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AEY2100900-ADLER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AEY3450900
Manufacturer ADLER
File Size 344.89 KB
Description AEY EV Fuse
Datasheet download datasheet AEY3450900 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ADLER

Part Number Description
AEY3400900 AEY EV Fuse
AEY3100900 AEY EV Fuse
AEY3125900 AEY EV Fuse
AEY3150900 AEY EV Fuse
AEY3175900 AEY EV Fuse

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

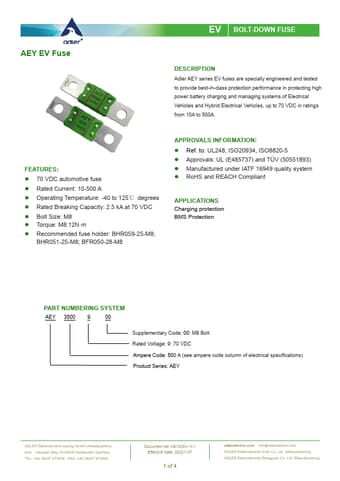

AEY EV Fuse EV BOLT-DOWN FUSE DESCRIPTION Adler AEY series EV fuses are specially engineered and tested to provide best-in-class protection performance in protecting high power battery charging and managing systems of Electrical Vehicles and Hybrid Electrical Vehicles, up to 70 VDC in ratings from 10A to 500A. FEATURES:  70 VDC automotive fuse  Rated Current: 10-500 A  Operating Temperature: -40 to 125℃ degrees  Rated Breaking Capacity: 2.5 kA at 70 VDC  Bolt Size: M8  Torque: M8:12Nꞏm  Recommended fuse holder: BHR059-25-M8; BHR051-25-M8; BFR050-28-M8 APPROVALS INFORMATION:  Ref.
