AEY3100900 - AEY EV Fuse

Download the AEY3100900 datasheet PDF (AEY2100900 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for aey ev fuse.

Description

Adler AEY series EV fuses are specially engineered and tested to provide best-in-class protection performance in protecting high power battery charging and managing systems of Electrical Vehicles and Hybrid Electrical Vehicles, up to 70 VDC in ratings from 10A to 500A.

Features

  • 70 VDC automotive fuse.
  • Rated Current: 10-500 A.
  • Operating Temperature: -40 to 125℃ degrees.
  • Rated Breaking Capacity: 2.5 kA at 70 VDC.
  • Bolt Size: M8.
  • Torque: M8:12Nꞏm.
  • Recommended fuse holder: BHR059-25-M8; BHR051-25-M8; BFR050-28-M8.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AEY2100900-ADLER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AEY3100900
Manufacturer ADLER
File Size 344.89 KB
Description AEY EV Fuse
Datasheet download datasheet AEY3100900 Datasheet

📁 Similar Datasheet

Other Datasheets by ADLER

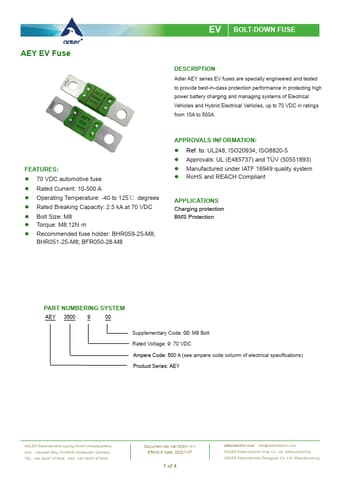

Full PDF Text Transcription

Click to expand full text
AEY EV Fuse EV BOLT-DOWN FUSE DESCRIPTION Adler AEY series EV fuses are specially engineered and tested to provide best-in-class protection performance in protecting high power battery charging and managing systems of Electrical Vehicles and Hybrid Electrical Vehicles, up to 70 VDC in ratings from 10A to 500A. FEATURES:  70 VDC automotive fuse  Rated Current: 10-500 A  Operating Temperature: -40 to 125℃ degrees  Rated Breaking Capacity: 2.5 kA at 70 VDC  Bolt Size: M8  Torque: M8:12Nꞏm  Recommended fuse holder: BHR059-25-M8; BHR051-25-M8; BFR050-28-M8 APPROVALS INFORMATION:  Ref.
