A711 - 1.1A HIGH VOLTAGE ADJUSTABLE CURRENT REGULATOR

Description

The A711 is a high voltage, low dropout current regulator for high power LED, that the maximum output current can be up to 1.1Amp.

The output current was decided by an external resistor.

The output sink current could be disabled via OE pin.

Features

  • 0.8V Output Drop-out Voltage at 1.1Amp. 1.1Amp. Maximum Output Current. Output Current Controlled by External Resistor. 3us Fast Response Output Stage Enable Control. Output Pin Sustain Voltage Up To 75V. Supply Voltage Range 5V~50V. TO-263-5L package.

📥 Download Datasheet

Datasheet Details

Part number A711
Manufacturer ADDtek
File Size 287.18 KB
Description 1.1A HIGH VOLTAGE ADJUSTABLE CURRENT REGULATOR
Datasheet download datasheet A711 Datasheet

📁 Similar Datasheet

  • A7110 - 1.5MHz 1A SYNCHRONOUS STEP-DOWN CURRENT MODE HIGH EFFICIENCY DC-DC CONVERTER (AiT Semiconductor)
  • A7111 - 1A SYNCHRONOUS PSM/PWM BUCK (STEP-DOWN) DC-DC CONVERTER (AiT Semiconductor)
  • A7112 - 1.2A 1.5MHz SYNCHRONOUS DC-DC CONVERTER BUCK (AiT Semiconductor)
  • A7114 - SYNCHRONOUS STEP DOWN DC-DC CONVERTER (AiT Semiconductor)
  • A7115B - DC-DC CONVERTER BUCK (AiT Semiconductor)
  • A7116 - DC-DC CONVERTER/ BUCK (AiT Semiconductor)
  • A7118 - 1.5MHz 800mA HIGH EFFICIENCY PSM/PWM SYNCHRONOUS STEP-DOWN DC-DC CONVERTER (AiT Semiconductor)
  • A71 - Cascadable Amplifier (Tyco Electronics)
  • A71-H08X - 2-Electrode-Arrester (EPCOS)
  • A71-H08XG - 2-Electrode-Arrester (EPCOS)
Other Datasheets by ADDtek

    Full PDF Text Transcription

    Click to expand full text

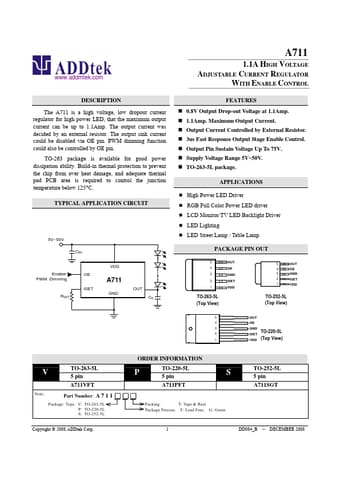

    www.addmtek.com DESCRIPTION The A711 is a high voltage, low dropout current regulator for high power LED, that the maximum output current can be up to 1.1Amp. The output current was decided by an external resistor. The output sink current could be disabled via OE pin. PWM dimming function could also be controlled by OE pin. TO-263 package is available for good power dissipation ability. Build-in thermal protection to prevent the chip from over heat damage, and adequate thermal pad PCB area is required to control the junction temperature below 125°C. TYPICAL APPLICATION CIRCUIT 5V~50V CBP Enable/ PWM Dimming RSET OE ISET VDD A711 GND OUT CO A711 1.1A HIGH VOLTAGE ADJUSTABLE CURRENT REGULATOR WITH ENABLE CONTROL FEATURES 0.8V Output Drop-out Voltage at 1.1Amp. 1.1Amp.
