BL0605-10L2500NA - Multilayer Chip Baluns

BL0605-10L2500NA Description

ACX Advanced Ceramic X BL 0605 Series Multilayer Chip Baluns .

BL0605-10L2500NA Applications

*  2.3 ~ 2.69 GHz wireless communication systems. Specifications Frequency Unbalanced Balance Part Number Range Impedance Impedance (MHz) (ohm) (ohm) BL0605- 2300 ~ 10L2500NA_ 2690 50 100 Insertion Loss (dB) 0.55 max. VSWR @BW 2.0 max. Phase Difference (degree) Amplitude Difference (dB)

📥 Download Datasheet

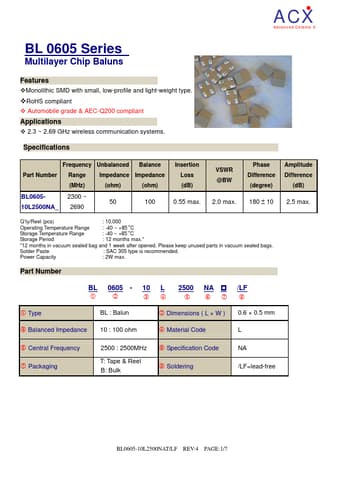

Preview of BL0605-10L2500NA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL0605-10L2500NA
Manufacturer
ACX
File Size
113.97 KB
Datasheet
BL0605-10L2500NA-ACX.pdf
Description
Multilayer Chip Baluns
