D6015V12M - DC Fan

Download the D6015V12M datasheet PDF. This datasheet also covers the D6015V12H variant, as both devices belong to the same dc fan family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

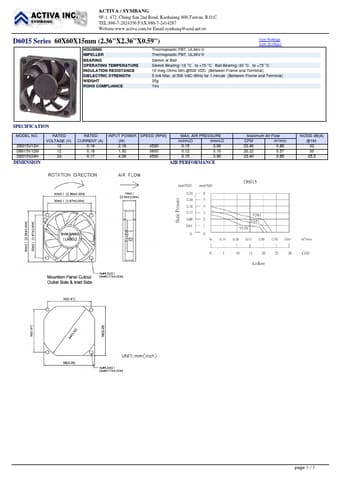

D6015V12M dc fan by ACTIVA - Datasheet Preview — Note: The manufacturer provides a single datasheet file (D6015V12H-ACTIVA.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	D6015V12M
Manufacturer	ACTIVA
File Size	246.21 KB
Description	DC Fan
Datasheet	D6015V12M Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
D6015L	Rectifier	Littelfuse
D6015LTP	Rectifier	Littelfuse
D600	2SD600	Sanyo Semicon Device
D6001N	Rectifier Diode	Infineon
D6002	Radio Controlled Receiver	Shaoxing Silicore Technology

Other Datasheets by ACTIVA

Part Number	Description
D6015V12H	DC Fan
D6015V24H	DC Fan

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

ACTIVA / SYMBANG 9F-1, 472, Chung San 2nd Road, Kaohsiung 800,Taiwan, R.O.C. TEL:886-7-2824356 FAX:886-7-2414287 Website:www.activa.com.tw Email:symbang@seed.net.tw D6015 Series 60X60X15mm (2.36"X2.36"X0.59") View WebPage View 3D Object HOUSING Thermoplastic PBT, UL94V-0 IMPELLER Thermoplastic PBT, UL94V-0 BEARING Sleeve or Ball OPERATING TEMPERATURE Sleeve Bearing:-10 °C to +70 °C Ball Bearing:-30 °C to +75 °C INSULATION RESISTANCE 10 meg Ohms Min.@500 VDC (Between Frame and Terminal) DIELECTRIC STRENGTH 5 mA Max. at 500 VAC 60Hz for 1 minute (Between Frame and Terminal) WEIGHT 35g ROHS COMPLIANCE Yes SPECIFICATION MODEL NO. D6015V12H D6015V12M D6015V24H DIMENSION RATED VOLTAGE (V) 12 12 24 RATED CURRENT (A) 0.18 0.16 0.17 INPUT POWER (W) 2.16 1.92 4.
