EPC20, EPC10, EPC Cores

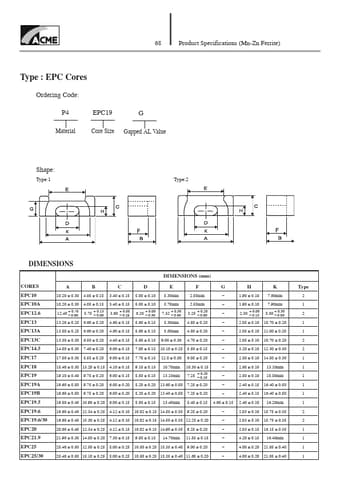

68 Product Specifications (Mn-Zn Ferrite) Type : EPC Cores Ordering Code: P4 EPC19 G Material Core Size Gapped AL Value Shape: Type:1 Type:2 DIMENSIONS CORES EPC10 EPC10A EPC12.6 EPC13 EPC13A EPC13C EPC14.5 EPC17 EPC18 EPC19 EPC19A EPC19B EPC19.5 EPC19.6 EPC19.6/30 EPC20 EPC21.9 EPC25 EPC25/30 DIMENSIONS (mm) ABCDE F 10.20 ± 0.30 4.05 ± 0.15 3.40 ± 0.15 5.00 ± 0.10 5.30min 2.55min 10.20 ± 0.30 4.05 ± 0.15 12.40 +_ 00..0400.
5.75 +_ 00..0103.
13.20 ± 0.25 6.60 ± 0.20 3.40 ± 0.15 3.6
