CHS100TB, CHS110TB Heading Sensor

CHS100TB Description

▼ Heading Accuracy 0.5° RMS ▼ Operates in dynamic environments with 360 degrees continuous roll ▼ Available in 1.1 inch, 1.0 inch or 0.9 inch diameter.

CHS100TB Applications

* ▼ Towed Sonar Arrays ▼ Seismic Streamers ▼ Buoy Orientation ▼ Magnetic Compassing CHS Series The CHS series of high performance fully calibrated, small diameter heading sensors are ideally suited for towed sonar array and seismic streamer applications. The CHS heading sensor is a solidstate “strapd

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CHS100TB, CHS110TB. Please refer to the document for exact specifications by model.

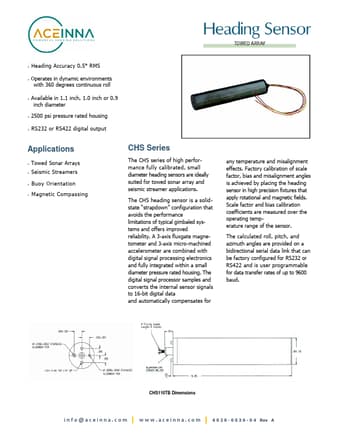

datasheet Preview Page 2

Datasheet Details

Part number
CHS100TB, CHS110TB
Manufacturer
ACEINNA
File Size
306.18 KB
Datasheet
CHS110TB-ACEINNA.pdf
Description
Heading Sensor
Note
This datasheet PDF includes multiple part numbers: CHS100TB, CHS110TB.
Please refer to the document for exact specifications by model.
