AK594096BG, AK594096BS - 4194304 Word by 9 Bit CMOS Dynamic Random Access Memory

AK594096BG Description

MICROCIRCUIT CORPORATION .
The Accutek AK594096 high density memory module is a CMOS random access memory organized in 4 Meg x 9 bit words.

AK594096BG Features

* 4,194,304 x 9 bit organization
* Low Profile 30 pad (SIM) Single In-Line Memory
* Low Profile 30 pin (SIP) Single In-Line package
* JEDEC standard pinout
* Common CAS, RAS and WE for the lower eight bits
* CAS-before-RAS refresh PIN NOMENCLATURE A0 - A10 RAS0 CAS WE OE DQ1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AK594096BG, AK594096BS. Please refer to the document for exact specifications by model.

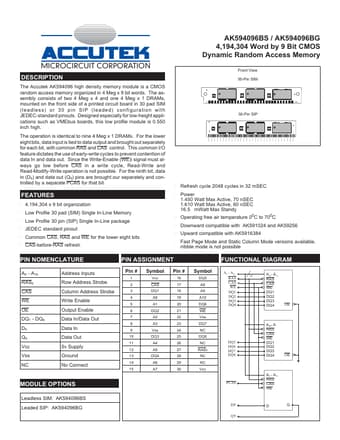

datasheet Preview Page 2

Datasheet Details

Part number
AK594096BG, AK594096BS
Manufacturer
ACCUTEK
File Size
144.77 KB
Datasheet
AK594096BS-ACCUTEK.pdf
Description
4194304 Word by 9 Bit CMOS Dynamic Random Access Memory
Note
This datasheet PDF includes multiple part numbers: AK594096BG, AK594096BS.
Please refer to the document for exact specifications by model.
