MC96F6508A - CMOS single-chip 8-bit MCU

ABOV

The MC96F6508A by ABOV is a CMOS single-chip 8-bit MCU. Below is the official datasheet preview.

📥 Download Datasheet

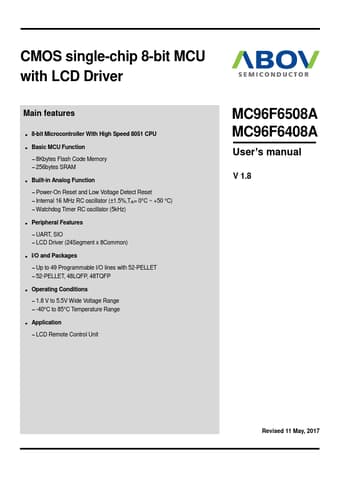

MC96F6508A CMOS single-chip 8-bit MCU by ABOV - Datasheet Preview — Official preview page of the MC96F6508A CMOS single-chip 8-bit MCU datasheet (ABOV).

Datasheet Details

Part number	MC96F6508A
Manufacturer	ABOV
File Size	2.33 MB
Description	CMOS single-chip 8-bit MCU
Datasheet	MC96F6508A-ABOV.pdf
Additional preview pages of the MC96F6508A datasheet.

MC96F6508A Product details

Description

The MC96F6508A and MC96F6408A are an advanced CMOS 8-bit microcontroller with 8Kbytes of FLASH memory.

Features

8-bit Microcontroller With High Speed 8051 CPU.
Basic MCU Function.
8Kbytes Flash Code Memory.
256bytes SRAM.
Built-in Analog Function.
Power-On Reset and Low Voltage Detect Reset.
Internal 16 MHz RC oscillator (±1.5%,TA= 0°C ~ +50 °C).
Watchdog Timer RC oscillator (5kHz).
Peripheral Features.
UART, SIO.
LCD Driver (24Segment x 8Common).
I/O and Packages.
Up to 49 Programmable I/O lines with 52-PELL.
