MC94F1202A - CMOS single-chip 8-bit MCU

ABOV

The MC94F1202A by ABOV is a CMOS single-chip 8-bit MCU. Below is the official datasheet preview.

📥 Download Datasheet

MC94F1202A CMOS single-chip 8-bit MCU by ABOV - Datasheet Preview — Official preview page of the MC94F1202A CMOS single-chip 8-bit MCU datasheet (ABOV).

Datasheet Details

Part number	MC94F1202A
Manufacturer	ABOV
File Size	1.40 MB
Description	CMOS single-chip 8-bit MCU
Datasheet	MC94F1202A-ABOV.pdf
Additional preview pages of the MC94F1202A datasheet.

MC94F1202A Product details

Description

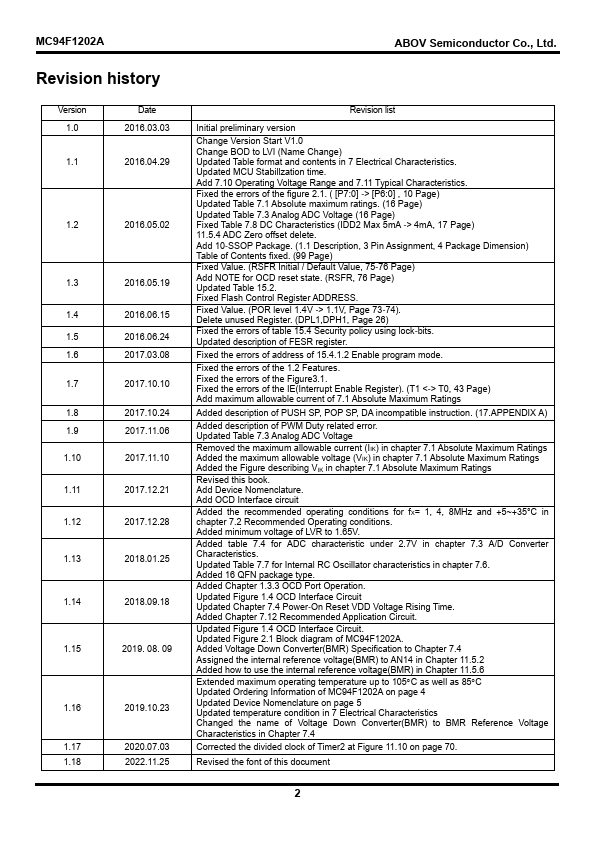

3 Pin Assignment, 4 Package Dimension) Table of Contents fixed.

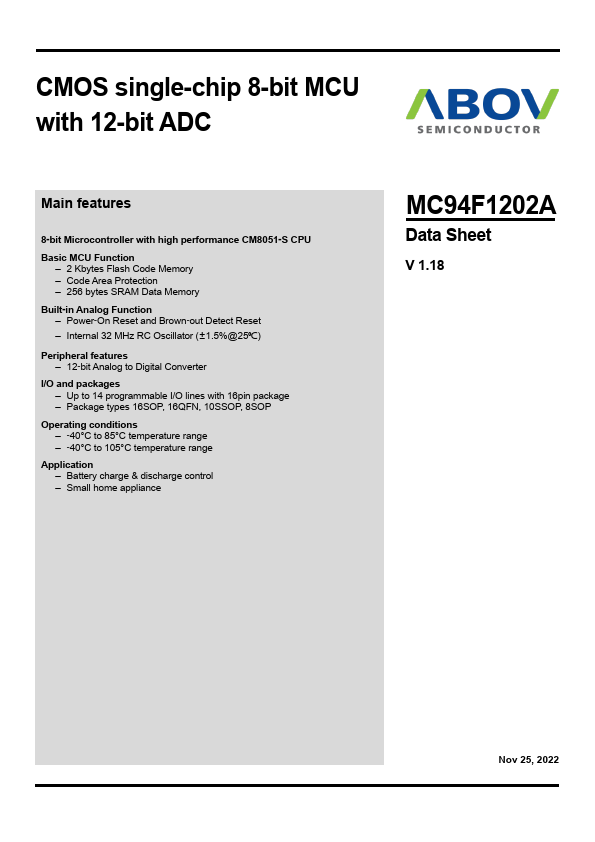

Features

8-bit Microcontroller with high performance CM8051-S CPU.
Basic MCU Function.
2 Kbytes Flash Code Memory.
Code Area Protection.
256 bytes SRAM Data Memory.
Built-in Analog Function.
Power-On Reset and Brown-out Detect Reset.
Internal 32 MHz RC Oscillator (±1.5%@25℃).
Peripheral features.
12-bit Analog to Digital Converter.
I/O and packages.
Up to 14 programmable I/O lines with 16pin package.
P.
