ADAM41P272X Datasheet (ABOV) - (ADAM41P272X) 4-BIT SINGLE CHIP MICROCOMPUTERS

ADAM41P272X, (ADAM41P272X) 4-BIT SINGLE CHIP MICROCOMPUTERS

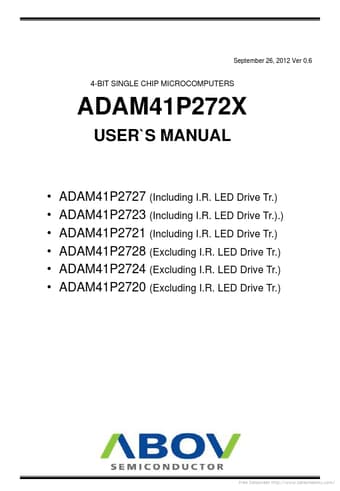

September 26, 2012 Ver 0.6 4-BIT SINGLE CHIP MICROCOMPUTERS ADAM41P272X USER`S MANUAL ADAM41P2727 (Including I.R.

LED Drive Tr.) ADAM41P2723 (Including I.R.

LED Drive Tr.).) ADAM41P2721 (Including I.R.

LED Drive Tr.) ADAM41P2728 (Excluding I.R.

LED Drive Tr.) ADAM41P2724 (Excluding I.R.

LED Drive Tr.) ADAM41P2720 (Excluding I.R.

LED Drive Tr.) Free Datasheet http://www.datasheet4u.com/ ADAM41P272X 1.

OVERVIEW 1.

Overview The ADA

ADAM41P272X Features

* Instruction Execution Time @ fosc=4MHz Program Memory (MTP)

* 48K Bytes (24,576 x 16bit) [ Multi-programmable by 16K-Byte or 24K-Byte ] Data Memory (RAM)

* 256 nibble (256 x 4bit) 16-Bit Table read
