S-93A66B, S-93A46B - 3-WIRE SERIAL E2PROM

ABLIC

📥 Download Datasheet

S-93A66B Datasheet Preview — This datasheet PDF includes multiple part numbers: S-93A66B, S-93A46B. Please refer to the document for exact specifications by model.

Datasheet Details

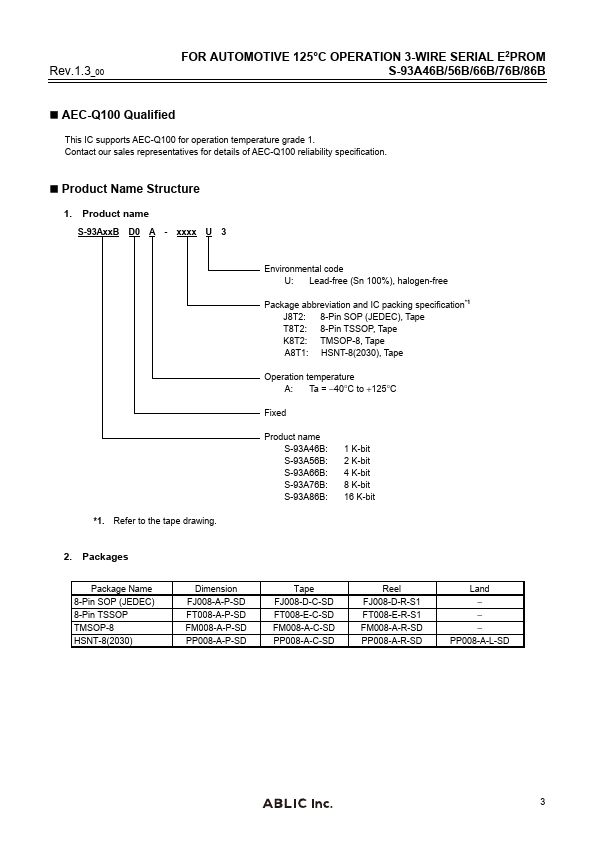

Part number	S-93A66B, S-93A46B
Manufacturer	ABLIC
File Size	521.14 KB
Description	3-WIRE SERIAL E2PROM
Datasheet	S-93A46B-ABLIC.pdf
Note	This datasheet PDF includes multiple part numbers: S-93A66B, S-93A46B. Please refer to the document for exact specifications by model.

S-93A66B Product details

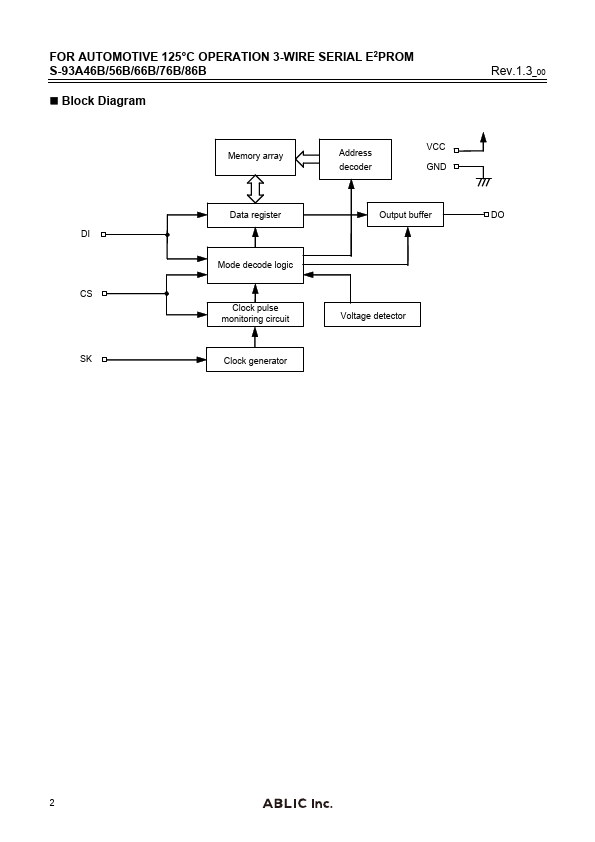

Description

Chip select input Serial clock input Serial data input Serial data output Ground Test No connection Power supply 2. 8-Pin TSSOP Top view 1 8 2 7 3 6 4 5 Pin No.1 2 3 4 5 6 7 8 Symbol CS SK DI DO GND TEST 1 NC VCC Description Chip select input Serial clock input Serial data input Serial data output Ground Test No connection Power supply 3. TMSOP-8 Top view 1 8 2 7 3 6 4 5 Pin No.1 2 3 4 5 6 7 8 Symbol CS SK DI DO GND TEST

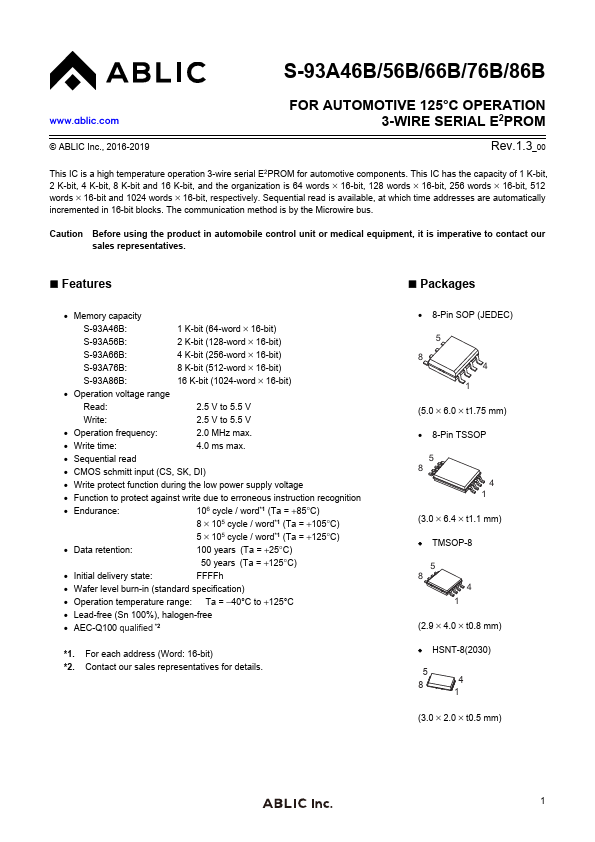

Features

Memory capacity S-93A46B: 1 K-bit (64-word × 16-bit) S-93A56B: 2 K-bit (128-word × 16-bit) S-93A66B: 4 K-bit (256-word × 16-bit) S-93A76B: 8 K-bit (512-word × 16-bit) S-93A86B: 16 K-bit (1024-word × 16-bit).
Operation voltage range Read: 2.5 V to 5.5 V Write: 2.5 V to 5.5 V.
Operation frequency: 2.0 MHz max.
Write time: 4.0 ms max.
Sequential read.
CMOS schmitt input (CS, SK, DI).
Write protect function during th.
