S-875041C - VOLTAGE REGULATOR

Download the S-875041C datasheet PDF. This datasheet also covers the S-875077A variant, as both devices belong to the same voltage regulator family and are provided as variant models within a single manufacturer datasheet.

Features

  • Accuracy of output voltage: 2.4 % 2.5 V to 5.8 V (0.1 V step).
  • Accuracy of detection voltage: 2.4 % (For the F type, the release voltage is 1.1 %) 2.1 V to 11.3 V (0.1 V step).
  • Low I/O voltage difference: 0.15 V typ. (at IOUT30 mA, VOUT5.0 V) 0.45 V typ. (at IOUT30 mA, VOUT3.0 V).
  • Low current consumption: At Operation mode: 8 A max. At Shutdown mode: 3.5 A max. (Available for the C/E/G type).
  • Wide operating voltage range: 24 V max.
  • Wide op.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S-875077A-ABLIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S-875041C
Manufacturer ABLIC
File Size 535.16 KB
Description VOLTAGE REGULATOR
Datasheet download datasheet S-875041C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S-801 ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR Seiko Instruments
S-80230AG VOLTAGE REGULATOR Seiko Instruments
S-80250AG VOLTAGE REGULATOR Seiko Instruments
S-807 HIGH-PRECISION VOLTAGE DETECTOR Seiko
S-80735AN-DZ-X High-Precision Voltage Detector Kexin

Other Datasheets by ABLIC

Part Number Description
S-875041A VOLTAGE REGULATOR
S-875041B VOLTAGE REGULATOR
S-875042G VOLTAGE REGULATOR
S-875043A VOLTAGE REGULATOR
S-875043B VOLTAGE REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

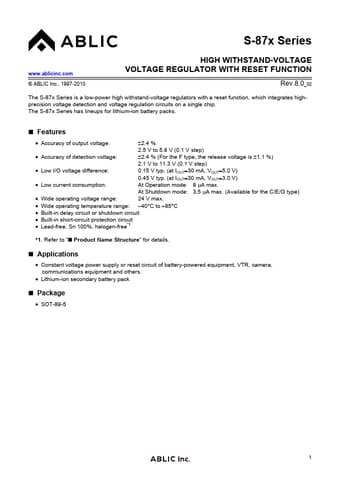

S-87x Series www.ablicinc.com © ABLIC Inc., 1997-2010 HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION Rev.8.0_02 The S-87x Series is a low-power high withstand-voltage regulators with a reset function, which integrates highprecision voltage detection and voltage regulation circuits on a single chip. The S-87x Series has lineups for lithium-ion battery packs.  Features  Accuracy of output voltage: 2.4 % 2.5 V to 5.8 V (0.1 V step)  Accuracy of detection voltage: 2.4 % (For the F type, the release voltage is 1.1 %) 2.1 V to 11.3 V (0.1 V step)  Low I/O voltage difference: 0.15 V typ. (at IOUT30 mA, VOUT5.0 V) 0.45 V typ. (at IOUT30 mA, VOUT3.0 V)  Low current consumption: At Operation mode: 8 A max. At Shutdown mode: 3.5 A max.
