S-821BA - BATTERY PROTECTION IC

ABLIC

📥 Download Datasheet

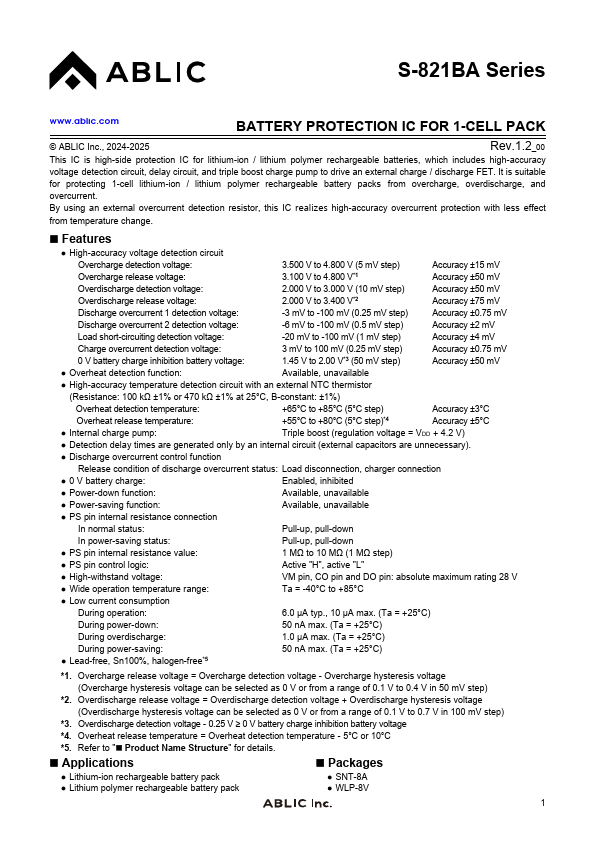

S-821BA Datasheet Preview — Preview of S-821BA PDF

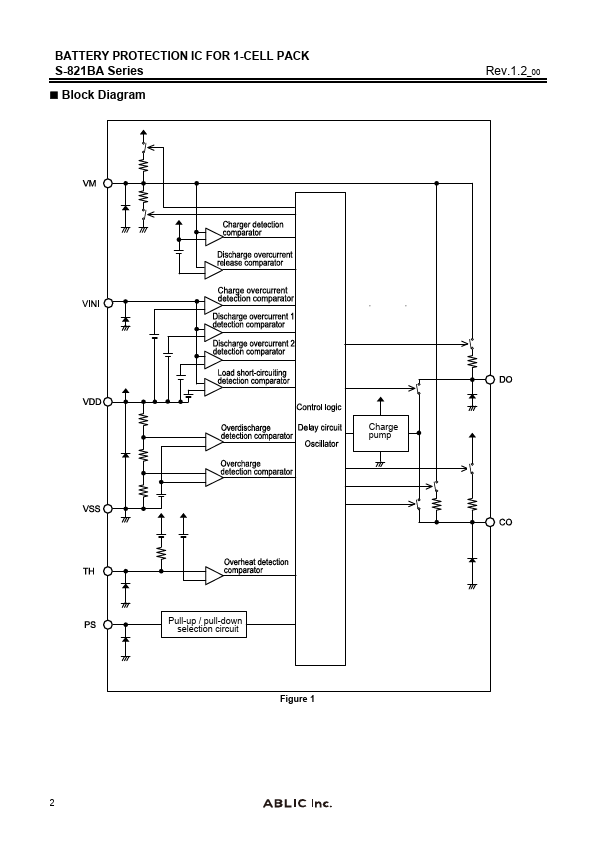

datasheet Preview Page 2

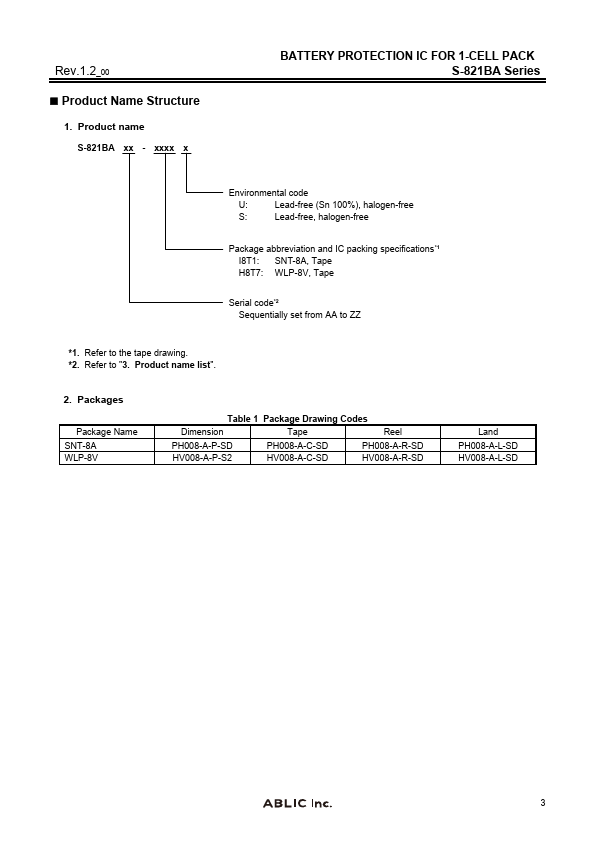

datasheet Preview Page 3

Datasheet Details

Part number	S-821BA
Manufacturer	ABLIC ↗
File Size	1.38 MB
Description	BATTERY PROTECTION IC
Datasheet	S-821BA-ABLIC.pdf

S-821BA Product details

Features

High-accuracy voltage detection circuit Overcharge detection voltage: 3.500 V to 4.800 V (5 mV step) Accuracy ±15 mV Overcharge release voltage: 3.100 V to 4.800 V.
1 Accuracy ±50 mV Overdischarge detection voltage: 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV Overdischarge release voltage: 2.000 V to 3.400 V.
2 Accuracy ±75 mV Discharge overcurrent 1 detection voltage: -3 mV to -100 mV (0.25 mV step) Accuracy ±0.75 mV Discharge overcurrent 2 detection voltage:.
