S-8206A Battery Protection

S-8206A Description

S-8206A Series www.ablic.com © ABLIC Inc., 2015-2020 BATTERY PROTECTION IC FOR 1-CELL PACK (SECONDARY PROTECTION) Rev.1.5_00 The S-8206A Series is .
No connection Connection pin of charge control FET gate Input pin for test signal Input pin for negative power supply Input pin for positive power sup.

S-8206A Features

* High-accuracy voltage detection circuit Overcharge detection voltage 3.500 V to 5.000 V (5 mV step) Accuracy ±20 mV Overcharge release voltage 3.100 V to 4.950 V
* 1 Accuracy ±50 mV
* Detection delay time is generated only by an internal circuit (external capacitors are u

S-8206A Applications

* Lithium-ion rechargeable battery pack
* Lithium polymer rechargeable battery pack
* Packages
* SNT-6A
* HSNT-6 (1212) 1 BATTERY PROTECTION IC FOR 1-CELL PACK (SECONDARY PROTECTION) S-8206A Series Rev.1.5_00
* Block Diagram 1. CMOS output, active "H" VD

📥 Download Datasheet

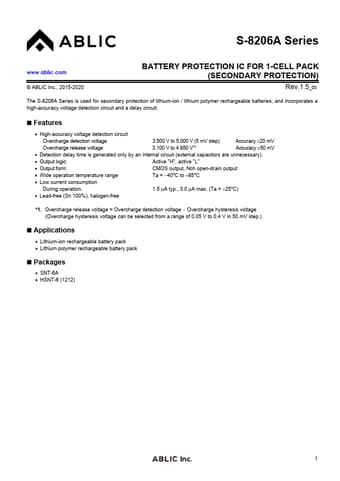

Preview of S-8206A PDF
