S-80850C, S-80808C - VOLTAGE REGULATOR

ABLIC

📥 Download Datasheet

S-80850C Datasheet Preview — This datasheet PDF includes multiple part numbers: S-80850C, S-80808C. Please refer to the document for exact specifications by model.

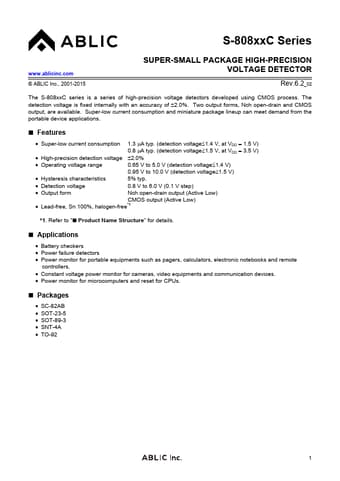

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S-80850C, S-80808C
Manufacturer: ABLIC
File Size: 672.36 KB
Datasheet: S-80808C-ABLIC.pdf
Description: VOLTAGE REGULATOR
Note: This datasheet PDF includes multiple part numbers: S-80850C, S-80808C.
Please refer to the document for exact specifications by model.

S-80850C Product details

Features

Super-low current consumption 1.3 A typ. (detection voltage1.4 V, at VDD  1.5 V) 0.8 A typ. (detection voltage1.5 V, at VDD  3.5 V).
High-precision detection voltage 2.0%.
Operating voltage range 0.65 V to 5.0 V (detection voltage1.4 V) 0.95 V to 10.0 V (detection voltage1.5 V).
Hysteresis characteristics 5% typ.
Detection voltage 0.8 V to 6.0 V (0.1 V step).
Output form Nch open-drain output (Active Low) CMOS output (Active Low).
Lead-f.
