S-5814A CMOS TEMPERATURE SENSOR

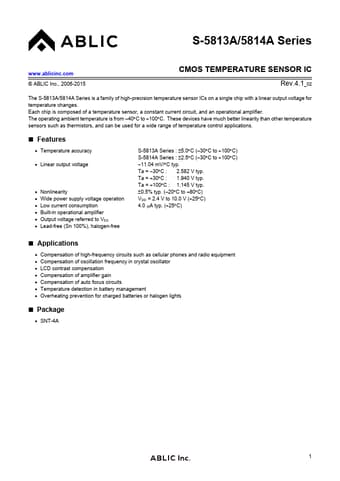

S-5813A/5814A Series www.ablicinc.com © ABLIC Inc., 2006-2015 CMOS TEMPERATURE SENSOR IC Rev.4.1_02 The S-5813A/5814A Series is a family of high-precision temperature sensor ICs on a single chip with a linear output voltage for temperature changes. Each chip is composed of a temperature sensor, a constant current circuit, and an operational amplifier. The operating ambient temperature is from 40C to 100C. These devices have much better linearity than other temperature sensors such.

S-5814A Features

* Temperature accuracy

* Linear output voltage

* Nonlinearity

* Wide power supply voltage operation

* Low current consumption

* Built-in operational amplifier

* Output voltage referred to VSS

* Lead-free (Sn 100%), halogen-free S-5813A Series : 5.0C (

* 30C

S-5813A-ABLIC.pdf

S-5814A Datasheet Preview — This datasheet PDF includes multiple part numbers: S-5814A, S-5813A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S-5814A, S-5813A

Manufacturer:

ABLIC

File Size:

392.31 KB

Description:

Cmos temperature sensor.

Note:

This datasheet PDF includes multiple part numbers: S-5814A, S-5813A.
Please refer to the document for exact specifications by model.
