S-19212D50H - VOLTAGE REGULATOR

Download the S-19212D50H datasheet PDF. This datasheet also covers the S-19212BxxH variant, as both devices belong to the same voltage regulator family and are provided as variant models within a single manufacturer datasheet.

Features

  • r>.
  • Output voltage:.
  • Input voltage:.
  • Output voltage accuracy:.
  • Current consumption:.
  • Output current:.
  • Input capacitor:.
  • Output capacitor:.
  • Built-in overcurrent protection circuit:.
  • Built-in thermal shutdown circuit:.
  • Built-in ON / OFF circuit:.
  • Built-in discharge shunt circuit:.
  • Operation temperature range:.
  • Lead-free (Sn 100%), halogen-free.
  • Withstand 45 V load dump.
  • AEC-Q100 qualified.
  • 2 2.5 V to 16.0 V, selectable in 0.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S-19212BxxH-ABLIC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
S-19212D CMOS VOLTAGE REGULATOR Seiko
S-19212DxxA CMOS VOLTAGE REGULATOR Seiko
S-19212 CMOS VOLTAGE REGULATOR Seiko
S-19212B CMOS VOLTAGE REGULATOR Seiko
S-19212BxxA CMOS VOLTAGE REGULATOR Seiko

Other Datasheets by ABLIC

Part Number Description
S-19212D50A VOLTAGE REGULATOR
S-19212D55A VOLTAGE REGULATOR
S-19212D25A VOLTAGE REGULATOR
S-19212D30A VOLTAGE REGULATOR
S-19212D30H VOLTAGE REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

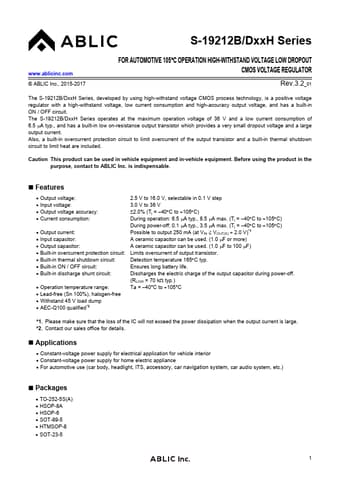

S-19212B/DxxH Series www.ablicinc.com © ABLIC Inc., 2015-2017 FOR AUTOMOTIVE 105C OPERATION HIGH-WITHSTAND VOLTAGE LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.3.2_01 The S-19212B/DxxH Series, developed by using high-withstand voltage CMOS process technology, is a positive voltage regulator with a high-withstand voltage, low current consumption and high-accuracy output voltage, and has a built-in ON / OFF circuit. The S-19212B/DxxH Series operates at the maximum operation voltage of 36 V and a low current consumption of 6.5 A typ., and has a built-in low on-resistance output transistor which provides a very small dropout voltage and a large output current.
