S-19161A - BATTERY PROTECTION IC

ABLIC

📥 Download Datasheet

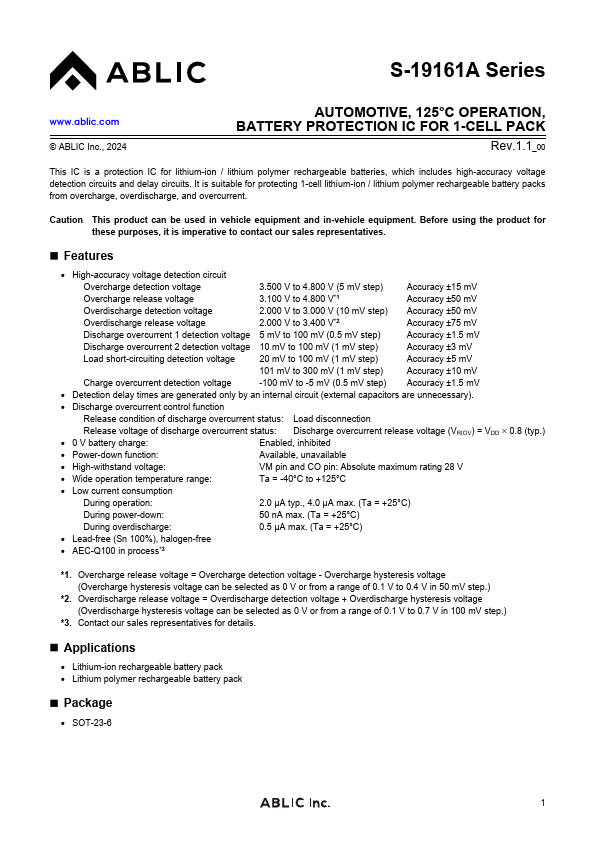

S-19161A Datasheet Preview — Preview of S-19161A PDF

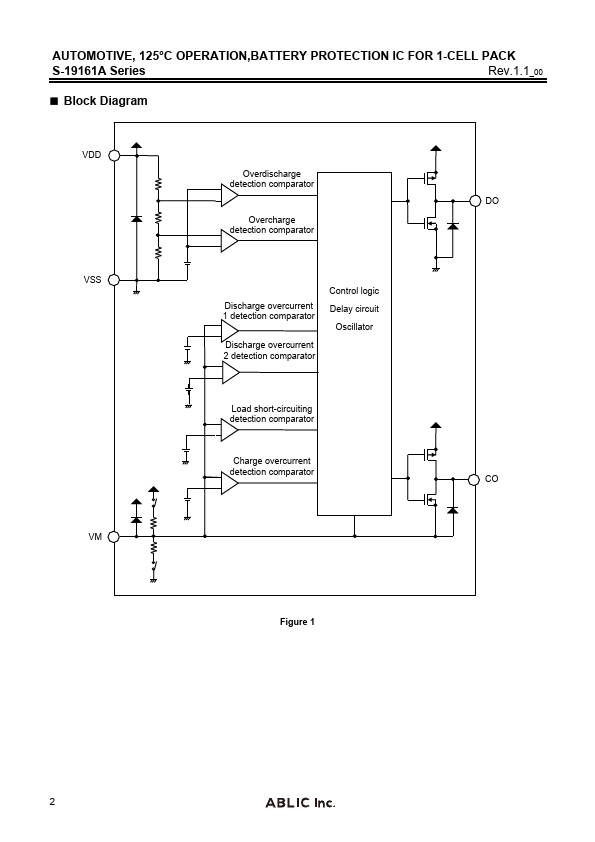

datasheet Preview Page 2

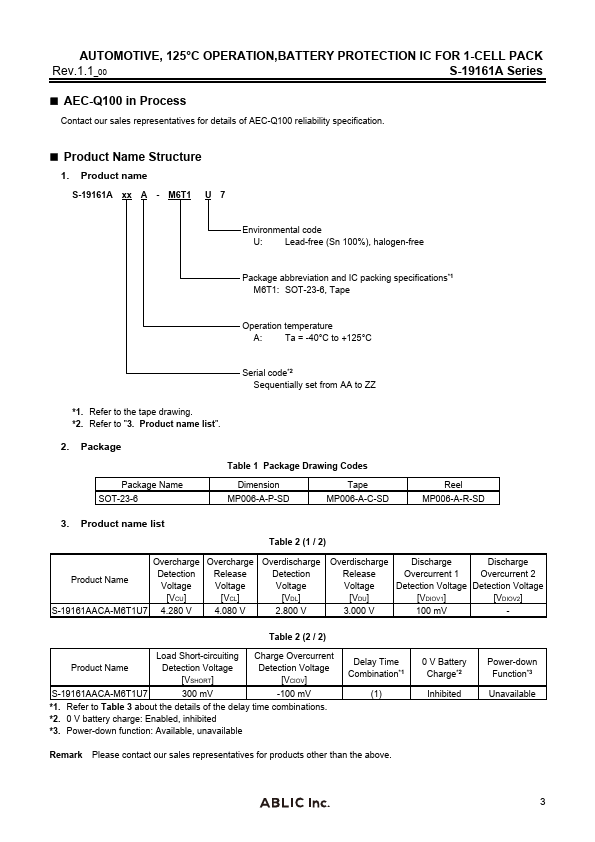

datasheet Preview Page 3

Datasheet Details

Part number	S-19161A
Manufacturer	ABLIC ↗
File Size	629.26 KB
Description	BATTERY PROTECTION IC
Datasheet	S-19161A-ABLIC.pdf

S-19161A Product details

Features

High-accuracy voltage detection circuit Overcharge detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±15 mV Overcharge release voltage 3.100 V to 4.800 V.
1 Accuracy ±50 mV Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV Overdischarge release voltage 2.000 V to 3.400 V.
2 Accuracy ±75 mV Discharge overcurrent 1 detection voltage 5 mV to 100 mV (0.5 mV step) Accuracy ±1.5 mV Discharge overcurrent 2 detection voltage 10 mV to 1.
