S-1318 - SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR

S-1318 Description

S-1318 Series www.ablic.com © ABLIC Inc., 2018-2023 5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR Rev.1.2_00 The S-131.

S-1318 Features

* super low current consumption and low dropout voltage. This IC has low current consumption of 95 nA typ. and high-accuracy output voltage of ±1.0%. It is most suitable for use in portable equipment and battery-powered devices.
* Features
* Output voltage:
* Input voltage:

S-1318 Applications

* Constant-voltage power supply for battery-powered device
* Constant-voltage power supply for portable communication device, digital camera, and digital audio player
* Constant-voltage power supply for home electric appliance
* Packages
* SOT-23-5
* HSNT

📥 Download Datasheet

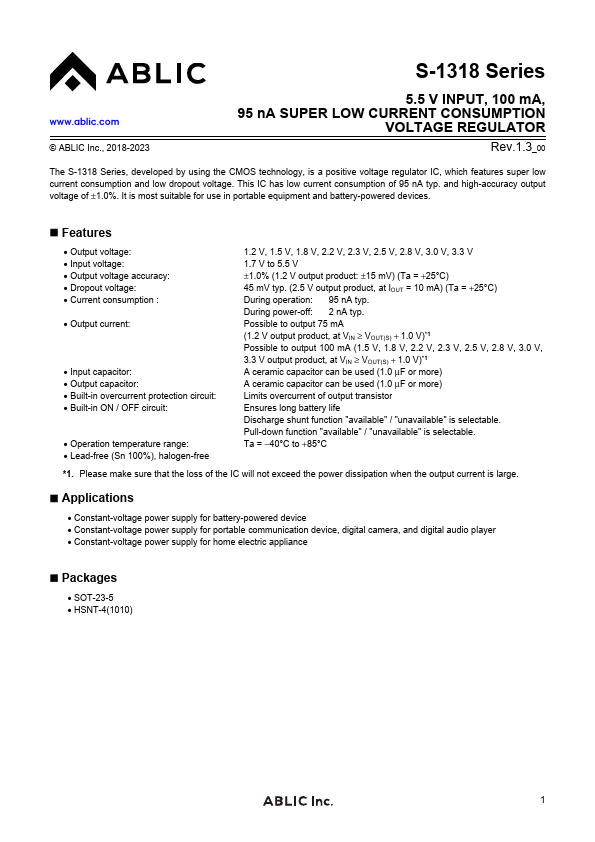

Preview of S-1318 PDF

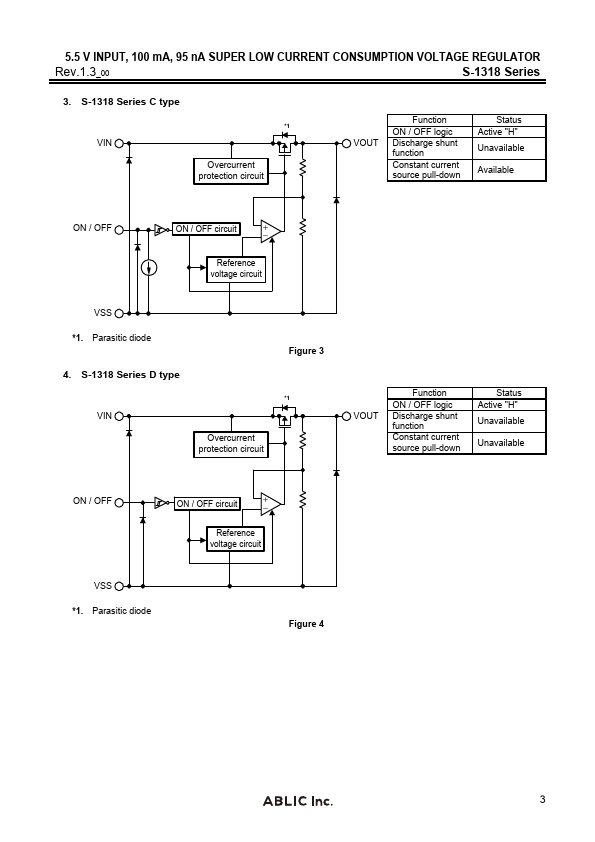

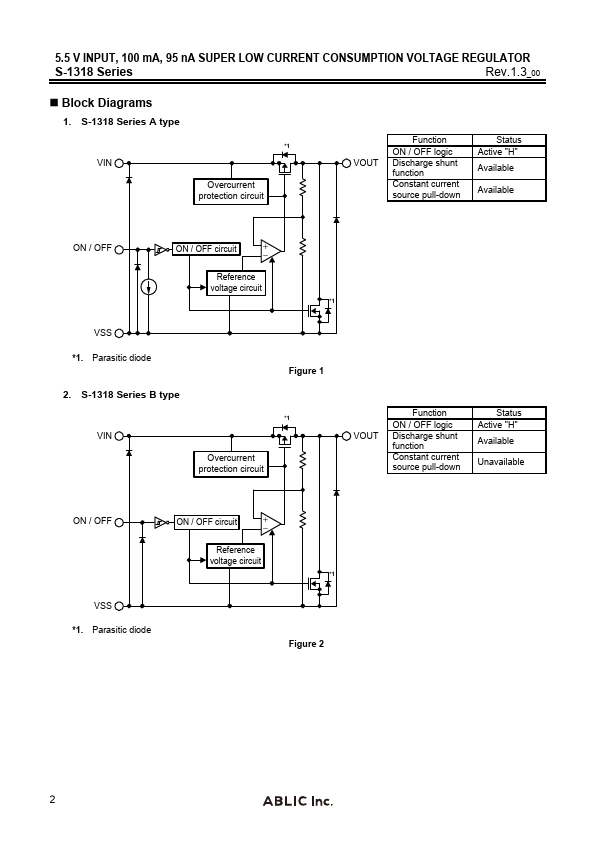

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-1318
Manufacturer
ABLIC
File Size
676.02 KB
Datasheet
S-1318-ABLIC.pdf
Description
SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR
