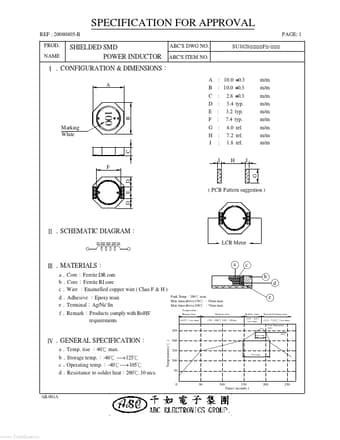

SPECIFICATION FOR APPROVAL
REF : 20080805-B PROD. NAME PAGE: 1 ABC'S DWG NO. ABC'S ITEM NO. SU1028□□□□F□-□□□
SHIELDED SMD POWER INDUCTOR
Ⅰ﹒CONFIGURATION & DIMENSIONS：
A A B : 10.0 ±0.3 : 10.0 ±0.3 2.8 ±0.3 3.4 typ. 3.2 typ. 7.4 typ. 4.0 ref. 7.2 ref. 1.8 ref. H I G D m/m m/m m/m m/m m/m m/m m/m m/m m/m
C : D : E : F : G H I : : : I
100
F
Marking White
C
B
Ⅱ﹒SCHEMATIC DIAGRAM：
LCR Meter
D
E
( PCB Pattern suggestion )
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core b﹒Core：Ferrite RI core c﹒Wire ：Enamelled copper wire ( Class F & H ) d﹒Adhesive ：Epoxy resin e﹒Terminal：Ag/Ni/ Sn f﹒ Remark：Products comply with RoHS' requirements
250
a
c b d
Peak Temp： 260 ℃ max. Max time above 230℃ ：50sec max. Max time above 200℃ ：70sec max.
Temperature Rising Area +4.0℃ / sec max.
SU1028100YF Datasheet
