5STP42U6200 - Phase Control Thyristor

Download the 5STP42U6200 datasheet PDF. This datasheet also covers the 5STP42U6500 variant, as both devices belong to the same phase control thyristor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5STP42U6500_ABB.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5STP42U6200
Manufacturer ABB
File Size 829.96 KB
Description Phase Control Thyristor
Datasheet download datasheet 5STP42U6200 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5STP Time-lag Fuse Series Bel Fuse
5STP12K6500 HIGH POWER THYRISTOR YZPST
5ST Time-lag Fuse Series Bel Fuse
5STR03T2040 REVERSE CONDUCTING THYRISTORS PST

Other Datasheets by ABB

Part Number Description
5STP42U6500 Phase Control Thyristor
5STP42U5800 Phase Control Thyristor
5STP45N2200 Phase Control Thyristor
5STP45N2600 Phase Control Thyristor
5STP45N2800 Phase Control Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

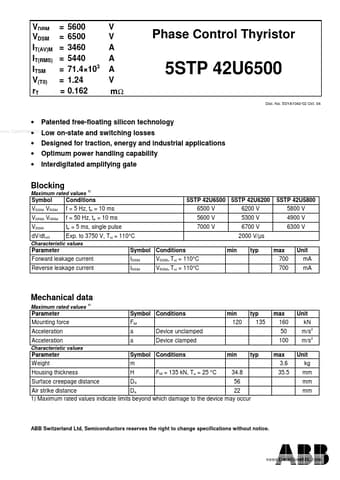

VDRM VDSM IT(AV)M IT(RMS) ITSM V(T0) rT = = = = = = = 5600 6500 3460 5440 71.4×103 1.24 0.162 V V A A A V mΩ Phase Control Thyristor 5STP 42U6500 Doc. No. 5SYA1043-02 Oct. 04 • • • • • Patented free-floating silicon technology Low on-state and switching losses Designed for traction, energy and industrial applications Optimum power handling capability Interdigitated amplifying gate www.DataSheet4U.com Blocking Maximum rated values 1) Symbol VDSM, VRSM VDRM, VRRM VRSM dV/dtcrit Parameter Conditions f = 5 Hz, tp = 10 ms f = 50 Hz, tp = 10 ms tp = 5 ms, single pulse Exp.
