AAT3132A - High Efficiency 1.5X Fractional Charge Pump

Download the AAT3132A datasheet PDF. This datasheet also covers the AAT3132 variant, as both devices belong to the same high efficiency 1.5x fractional charge pump family and are provided as variant models within a single manufacturer datasheet.

Description

The AAT3132/32A is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to maximize efficiency for white LED applications.

Features

  • ChargePump™ AnalogicTech's Simple Serial Control™ (S2Cwire™) interface is used to enable, disable, and set the LED drive current in two groups: the three 20mA outputs and the single 30mA output with multiple level logarithmic scales. The AAT3132/32A has a thermal management system to protect the device in the event of a short-circuit co.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AAT3132_AAT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AAT3132A
Manufacturer AAT
File Size 246.09 KB
Description High Efficiency 1.5X Fractional Charge Pump
Datasheet download datasheet AAT3132A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AAT3132 High Efficiency 1.5X Fractional Charge Pump Skyworks
AAT3131 High Efficiency 1X/1.5X Fractional Charge Pump Skyworks
AAT3134 High Efficiency 1X/1.5X Fractional Charge Pump Skyworks Solutions
AAT3103 3-Channel Charge-Pump LED Driver Advanced Analog Technology
AAT3103 Three-Channel Charge-Pump LED Driver Skyworks

Other Datasheets by AAT

Part Number Description
AAT3132 High Efficiency 1.5X Fractional Charge Pump
AAT3131 High Efficiency 1X/1.5X Fractional Charge Pump
AAT3112 High Efficiency Charge Pump
AAT3114 High Efficiency 1.5X Fractional Charge Pumps
AAT3114A High Efficiency 1.5X Fractional Charge Pumps

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

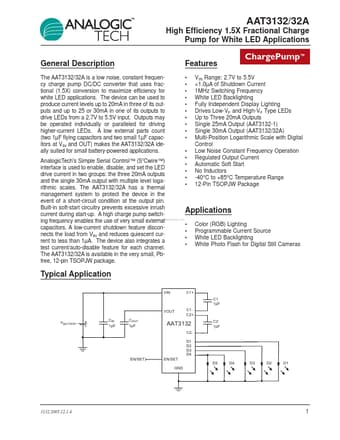

AAT3132/32A High Efficiency 1.5X Fractional Charge Pump for White LED Applications General Description The AAT3132/32A is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to maximize efficiency for white LED applications. The device can be used to produce current levels up to 20mA in three of its outputs and up to 25 or 30mA in one of its outputs to drive LEDs from a 2.7V to 5.5V input. Outputs may be operated individually or paralleled for driving higher-current LEDs. A low external parts count (two 1µF flying capacitors and two small 1µF capacitors at VIN and OUT) makes the AAT3132/32A ideally suited for small battery-powered applications.
