VDS7616A4A-7 - Synchronous DRAM

Product Overview

A-Data Technology

📥 Download Datasheet

VDS7616A4A-7 Synchronous DRAM by A-Data Technology - Datasheet Preview — Datasheet preview – VDS7616A4A-7

Datasheet Details

Part number	VDS7616A4A-7
Manufacturer	A-Data Technology
File Size	205.48 KB
Description	Synchronous DRAM
Datasheet	VDS7616A4A-7 Datasheet
Note	This datasheet PDF includes multiple part numbers: VDS7616A4A-7, VDS7616A4A_A. Please refer to the document for exact specifications by model.

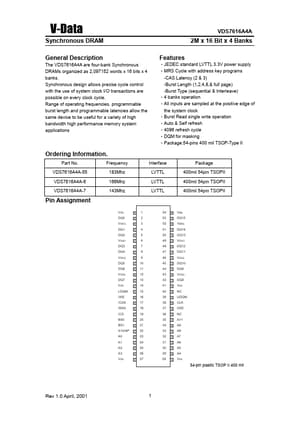

Additional preview pages of the VDS7616A4A-7 datasheet.

Product details

Description

The VDS7616A4A are four-bank Synchronous DRAMs organized as 2,097152 words x 16 bits x 4 banks.

Features

JEDEC standard LVTTL 3.3V power supply.
MRS Cycle with address key programs -CAS Latency (2 & 3) -Burst Length (1,2,4,8,& full page) -Burst Type (sequential & Interleave).
4 banks operation.
All inputs are sampled at the positive edge of the system clock.
Burst Read single write operation.
Auto & Self refresh.
4096 refresh cycle.
DQM for masking.
Package:54-pins 400 mil TSOP-Type II Ordering Information. Part No. Frequen.
