TP6002, TP6001 - Op Amps

Name: TP6002
SKU: TP6002-1305644

3Peak

The TP6002 by 3Peak is a Op Amps. Below is the official datasheet preview.

📥 Download Datasheet

TP6002 Op Amps by 3Peak - Datasheet Preview — Official preview page of the **TP6002** Op Amps datasheet (3Peak).

Datasheet Details

Part number	TP6002, TP6001
Manufacturer	3Peak
File Size	1.34 MB
Description	Op Amps
Datasheet	TP6001-3Peak.pdf
Note	This datasheet PDF includes multiple part numbers: TP6002, TP6001. Please refer to the document for exact specifications by model.

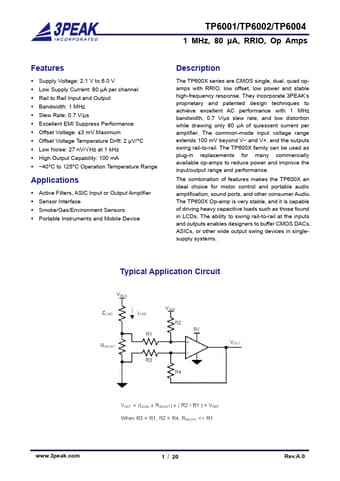

Additional preview pages of the TP6002 datasheet.

TP6002 Product details

Description

The TP600X series are CMOS single, dual, quad opamps with RRIO, low offset, low power and stable high-frequency response. and V+, and the outputs swing rail-to-rail.

Features

Supply Voltage: 2.1 V to 6.0 V.
Low Supply Current: 80 μA per channel.
Rail to Rail Input and Output.
Bandwidth: 1 MHz.
Slew Rate: 0.7 V/μs.
Excellent EMI Suppress Performance.
Offset Voltage: ±3 mV Maximum.
Offset Voltage Temperature Drift: 2 μV/°C.
Low Noise: 27 nV/√Hz at 1 kHz.
High Output Capability: 100 mA.
40°C to 125°C Operation Temperature Range.
