TP5531 Zero Drift Op-amps

TP5531 Description

3PEAK .
The 3PEAK TP5531/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift.

TP5531 Features

* LOW OFFSET VOLTAGE: 10 μV (Max)
* ZERO DRIFT: 0.008 µV/°C
* 0.1Hz to 10Hz Noise: 1.1 µVPP
* Low Supply Current: 42 µA per Amplifier
* Bandwidth: 350 kHz
* Slew Rate: 0.16 V/μs
* High Gain, 130 dB High CMRR and PSRR
* Rail-to-rail Input and Output Swing

TP5531 Applications

* Transducer Amplifier
* Bidirectional Current Sense
* DC Offset Correction
* Temperature Measurement
* Remote Located Sensors
* Battery-Powered Instruments
* Electronic Weigh Scales Pin Configuration (Top View) TP5531 SOT23-5/SC70-5 (-T and -C Suffixes) OUT 1 V- 2 +IN

📥 Download Datasheet

Preview of TP5531 PDF

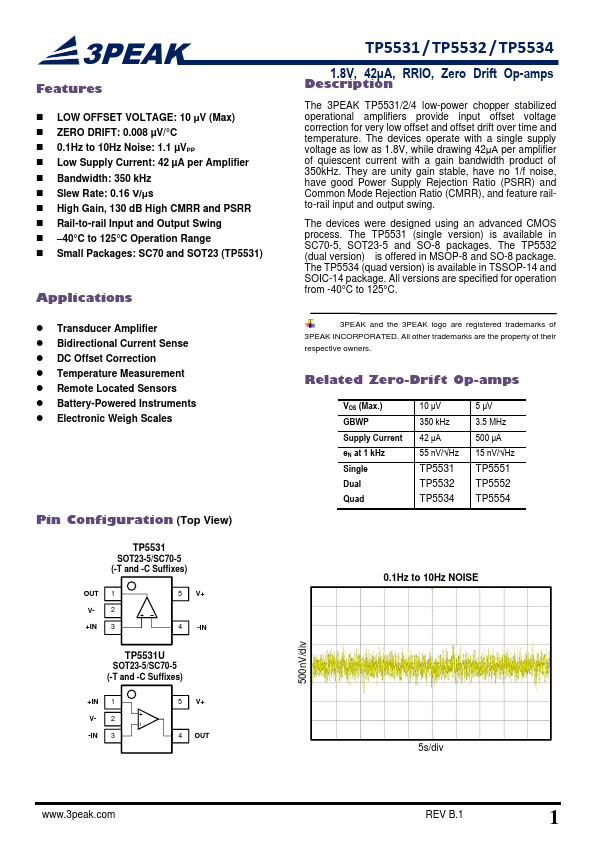

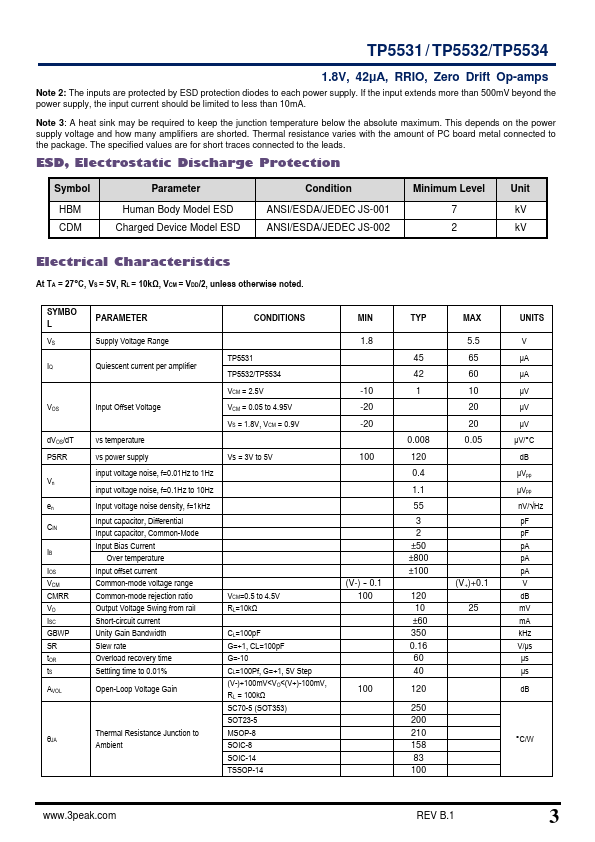

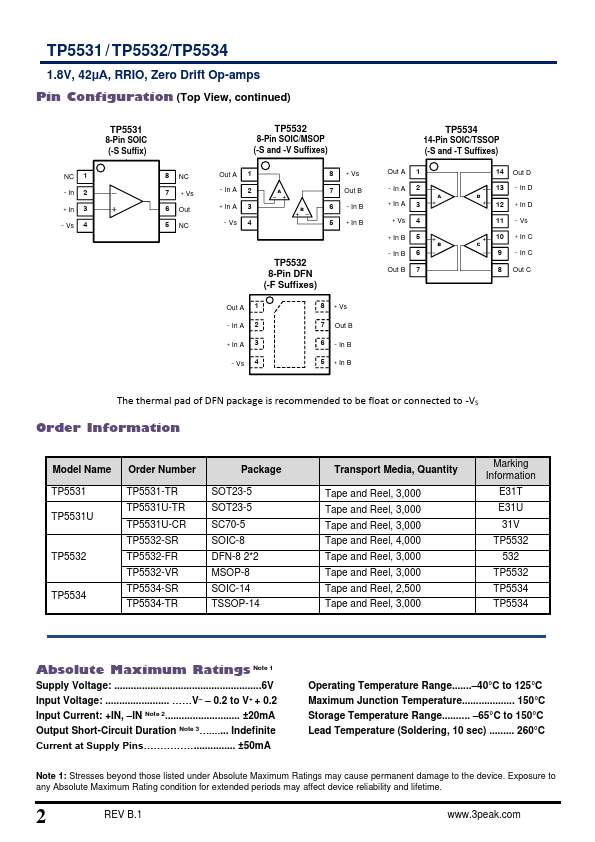

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP5531
Manufacturer
3Peak
File Size
1.11 MB
Datasheet
TP5531-3Peak.pdf
Description
Zero Drift Op-amps
