TP321 Micro-Power CMOS Op-Amps

TP321 Description

TP321/TP358/TP324 General Purpose, 1MHz, Micro-Power CMOS Op-Amps .
TP321/358/324 are general purpose single, dual and quad CMOS op-amps with low offset, high frequency response, low power, low supply voltage, and rail.

TP321 Features

* General Purpose, Low Cost
* Gain Bandwidth Product: 1MHz
* Low Quiescent Current: 45μA/Amplifier
* Offset Voltage: 5.0mV Maximum
* Offset Voltage Temperature Drift: 2uV/°C
* Input Bias Current: 10pA
* CMRR/PSRR: 90dB
* Unity Gain Stable
* Rail-to-Rail Input and

TP321 Applications

* Audio Output
* Battery and Power Supply Control
* Smoke/Gas/Environment Sensors
* Medical Equipment
* Portable Instruments and Mobile Device
* Active Filters
* Piezo Electrical Transducer Amplifier
* Sensor Interface

📥 Download Datasheet

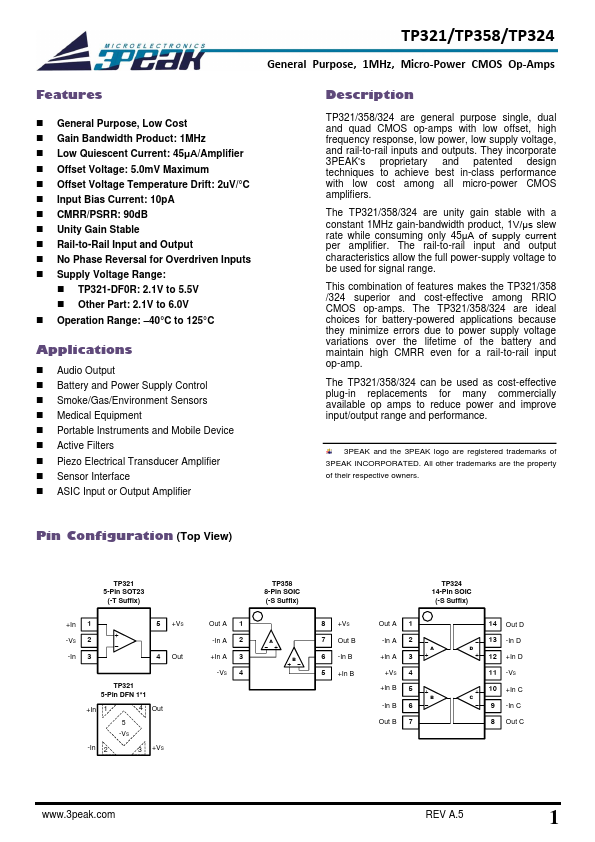

Preview of TP321 PDF

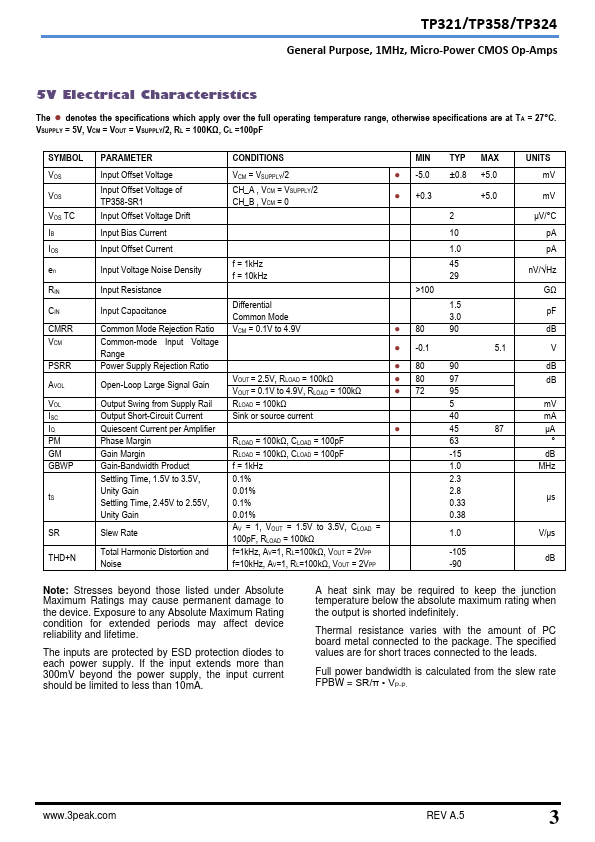

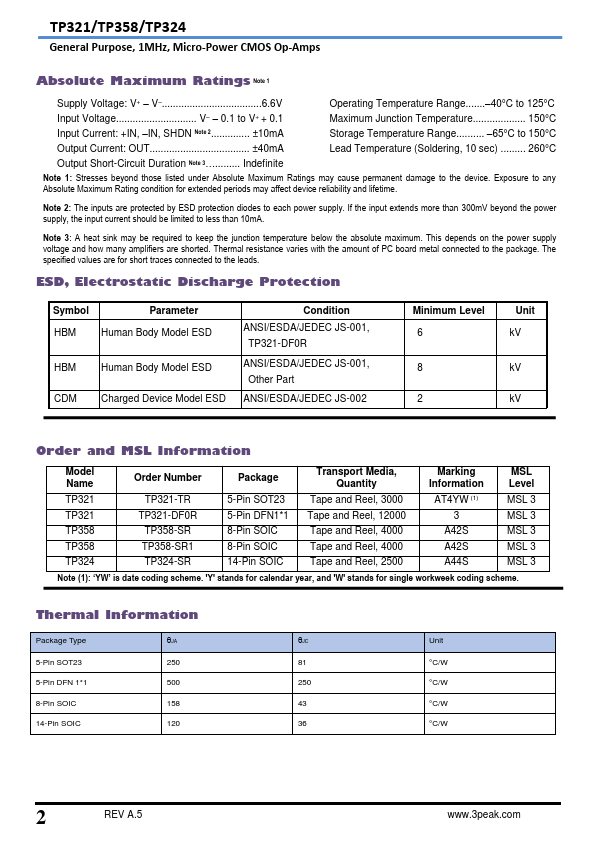

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP321
Manufacturer
3Peak
File Size
1.13 MB
Datasheet
TP321-3Peak.pdf
Description
Micro-Power CMOS Op-Amps
