TP1562X 5V 6-MHz Op Amp

3Peak

Description

TP1562X 5-V, Rail-to-Rail Input/Output, 6-MHz Op Amp .
Supply Voltage: 2. Offset Voltage: ±3 mV Maximum. Bandwidth: 6 MHz, Slew Rate: 5 V/μs. Low Power: 0.

📥 Download Datasheet

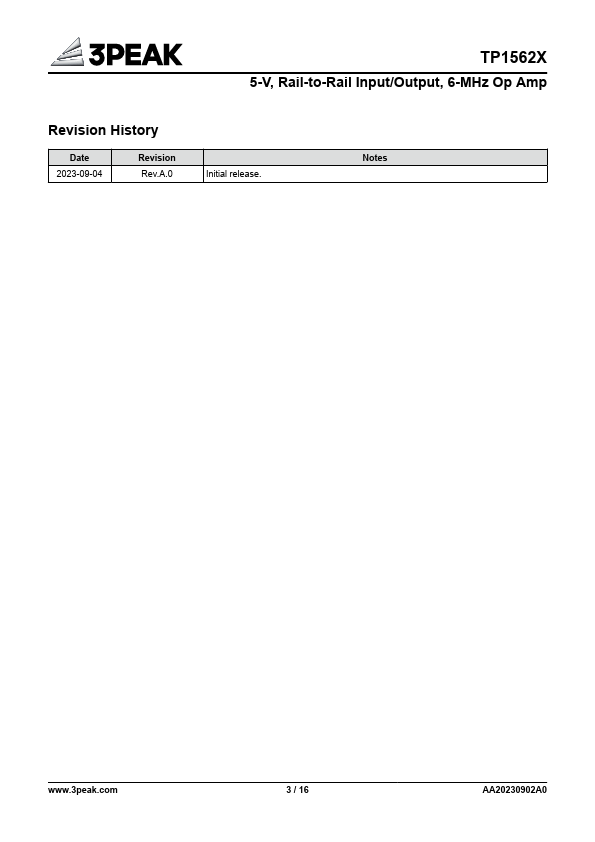

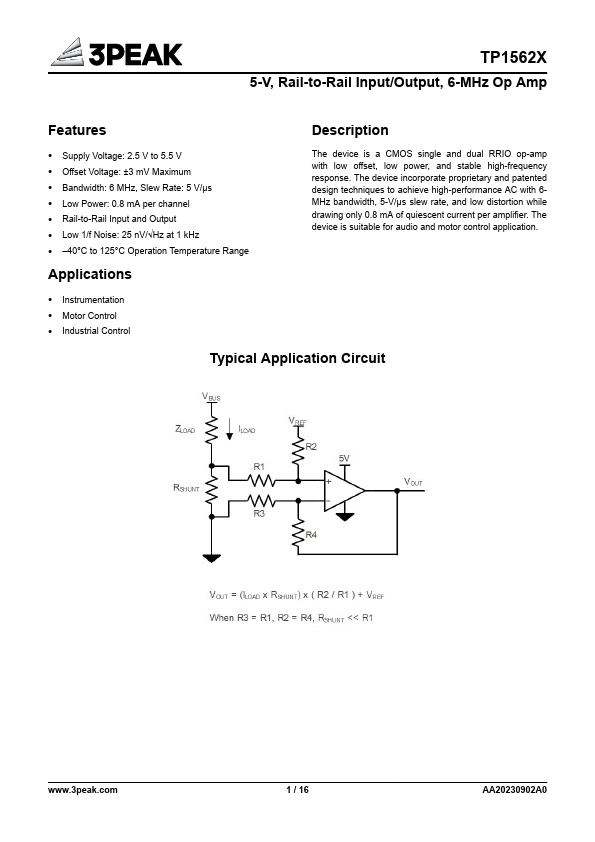

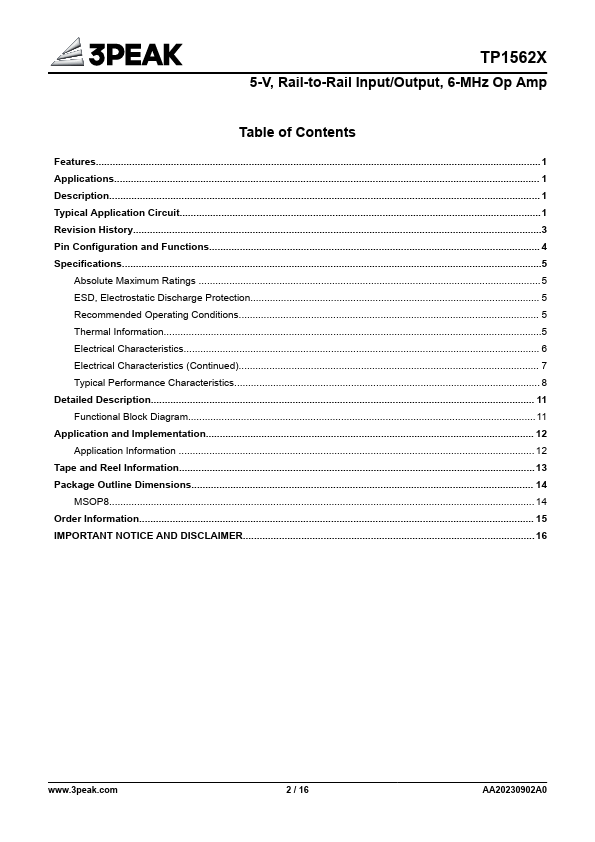

TP1562X Datasheet Preview — Preview of TP1562X PDF

Datasheet Specifications

Part number: TP1562X
Manufacturer: 3Peak
File Size: 1.03 MB
Datasheet: TP1562X-3Peak.pdf
Description: 5V 6-MHz Op Amp

Applications

* The device is a CMOS single and dual RRIO op-amp with low offset, low power, and stable high-frequency response. The device incorporate proprietary and patented design techniques to achieve high-performance AC with 6MHz bandwidth, 5-V/μs slew rate, and low distortion while drawing only 0.8 mA of qu
