TP07A Op Amps

TP07A Description

.
The TP07A is newest high supply voltage amplifiers with low offset, low power and stable high frequency response.

TP07A Features

* Supply Voltage: 4.5V to 36V
* Rail to Rail Output
* Bandwidth: 1 MHz
* Slew Rate: 0.7V/μs
* Excellent EMI Suppress Performance
* Offset Voltage: ±150μV Maximum
* Offset Voltage Temperature Drift: 2 μV/°C
* Low Noise: 30 nV/√Hz at 1kHz
* 40°C to 125°C Op

TP07A Applications

* Instrumentation
* Active Filters, ASIC Input or Output Amplifier
* Sensor Interface
* Motor Control

📥 Download Datasheet

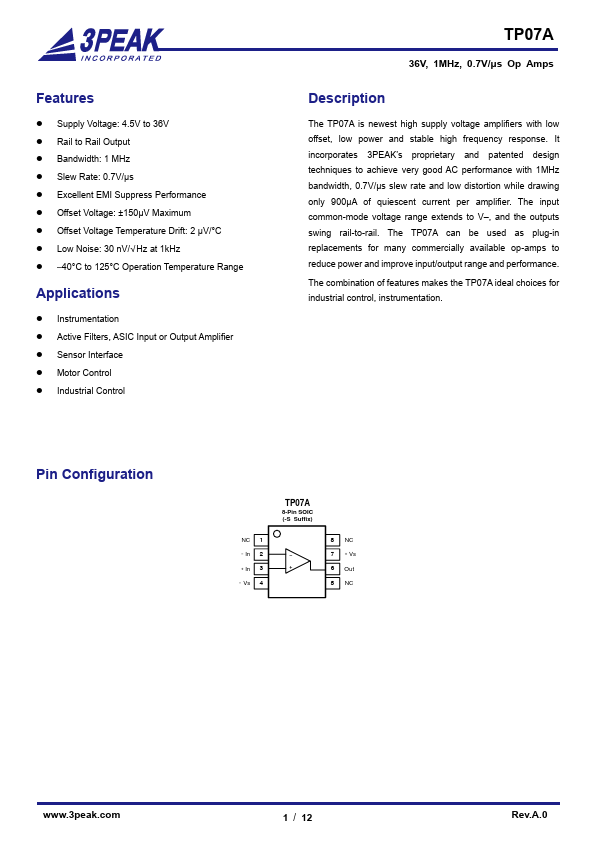

Preview of TP07A PDF

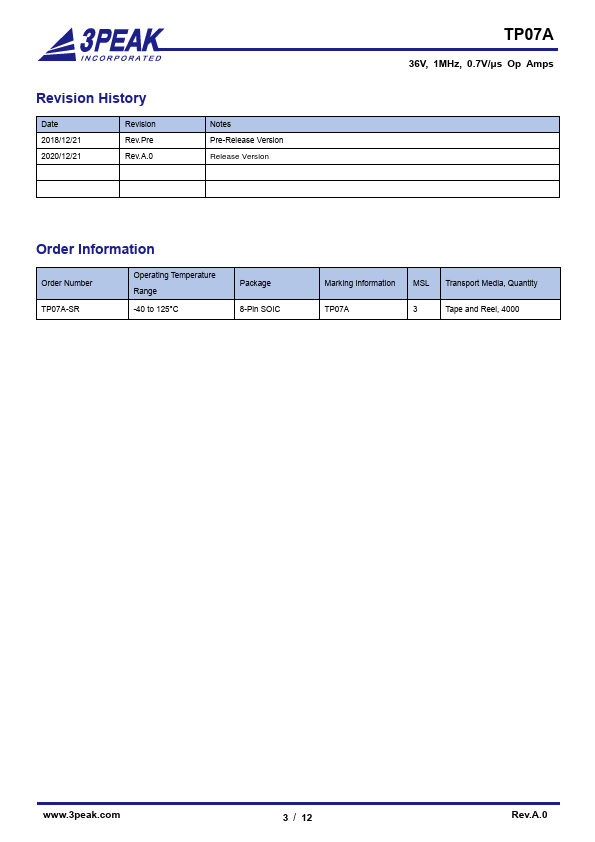

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP07A
Manufacturer
3Peak
File Size
732.27 KB
Datasheet
TP07A-3Peak.pdf
Description
Op Amps
