TPT4031 High Speed Quad Differential RS422 Driver

TPT4031 Description

.
3PEAK’s TPT4031 is an enhanced RS422 device which meets standard TIA/EIA-422-B with strong ESD protection capability.

TPT4031 Features

* Meets the TIA/EIA- 422-B requirements
* High speed, up to 50Mbps data rate, and tPLH = tPHL = 8 ns typical
* Low pulse distortion, tsk(p) = 0.5 ns Typical
* Wide power supply voltage 3.0V to 5.5V
* High output-drive current: ±30 mA
* Low quiescent supply current: 30 uA typi

TPT4031 Applications

* The device can generate 30mA high output drive current, with short protect function in some abnormal operations, the clamp current is less than 150mA. The TPT4031’s enable functions can control all four drivers and provide an active-high (G) or active-low (/G) enable input, and they provide the hig

📥 Download Datasheet

Preview of TPT4031 PDF

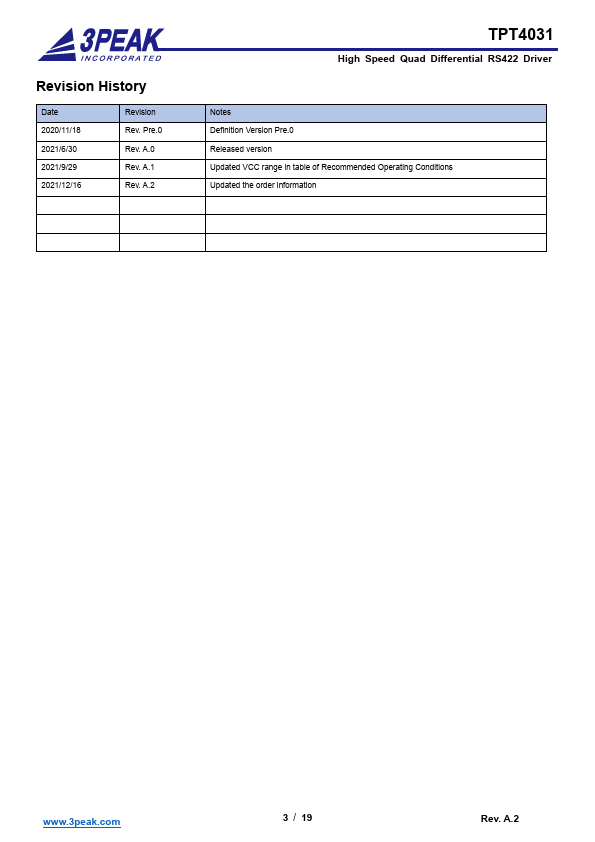

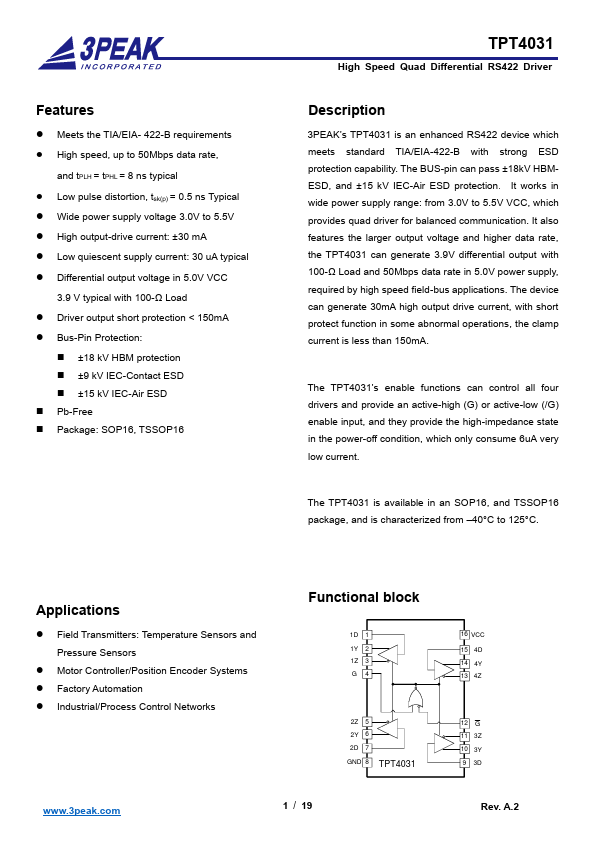

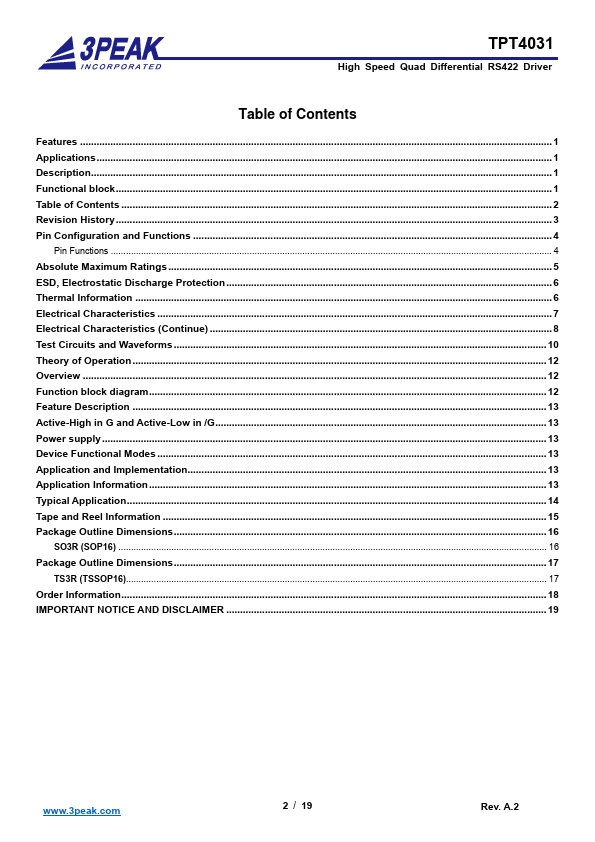

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT4031
Manufacturer
3PEAK
File Size
1.39 MB
Datasheet
TPT4031-3PEAK.pdf
Description
High Speed Quad Differential RS422 Driver
