TPT3232E - 250kbps RS-232 Transceivers

Name: TPT3232E
SKU: TPT3232E-1579429

3PEAK

The TPT3232E by 3PEAK is a 250kbps RS-232 Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

TPT3232E 250kbps RS-232 Transceivers by 3PEAK - Datasheet Preview — Official preview page of the **TPT3232E** 250kbps RS-232 Transceivers datasheet (3PEAK).

Datasheet Details

Part number	TPT3232E
Manufacturer	3PEAK
File Size	564.82 KB
Description	250kbps RS-232 Transceivers
Datasheet	TPT3232E-3PEAK.pdf

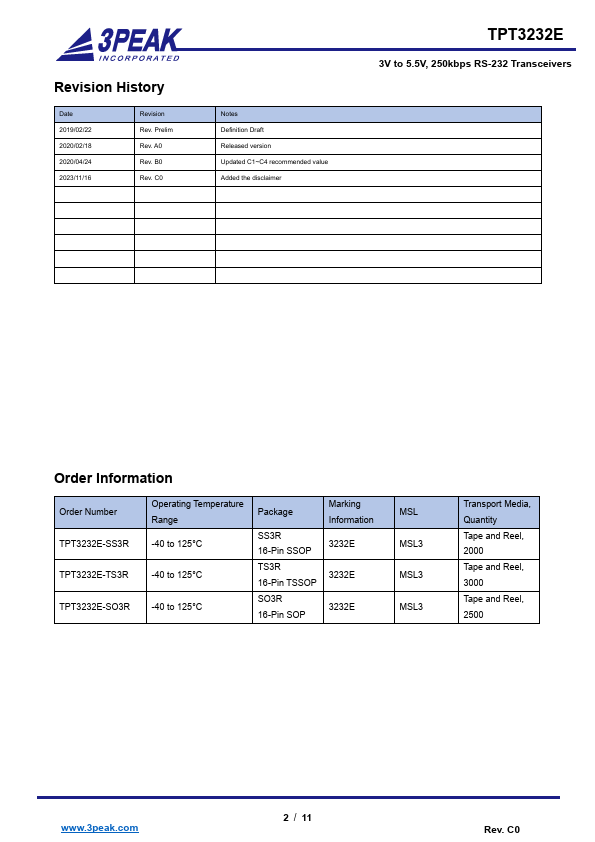

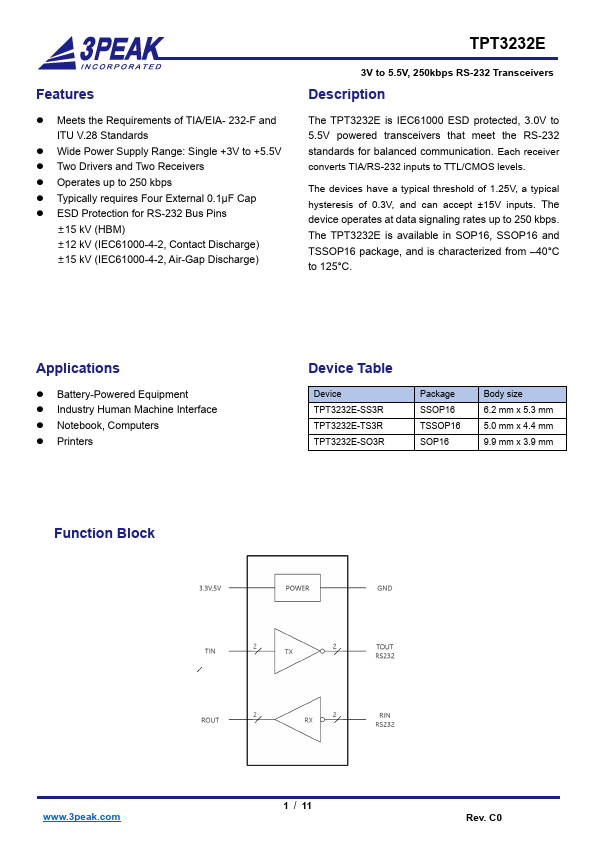

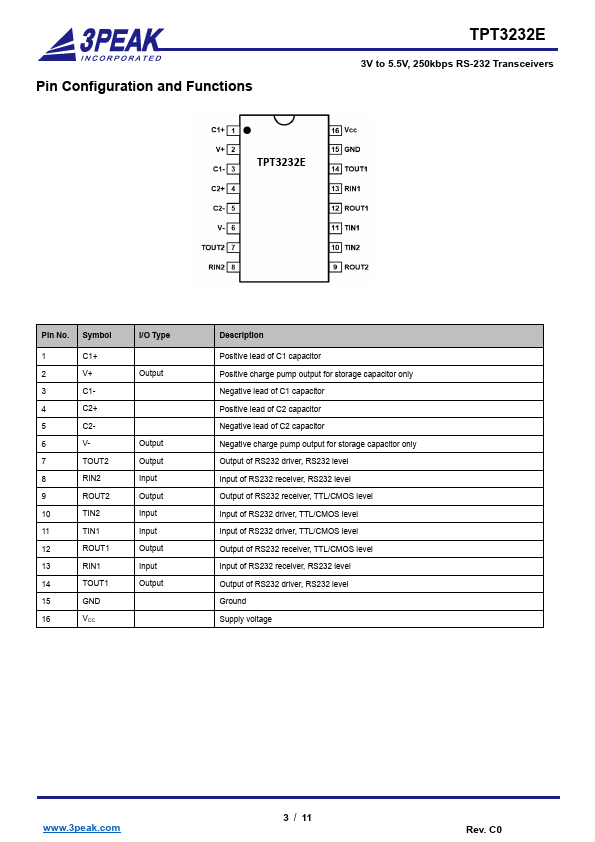

Additional preview pages of the TPT3232E datasheet.

TPT3232E Product details

Description

The TPT3232E is IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-232 standards for balanced communication. 40°C to 125°C. Battery

Features

Meets the Requirements of TIA/EIA- 232-F and ITU V.28 Standards.
Wide Power Supply Range: Single +3V to +5.5V.
Two Drivers and Two Receivers.
Operates up to 250 kbps.
Typically requires Four External 0.1μF Cap.
ESD Protection for RS-232 Bus Pins ±15 kV (HBM) ±12 kV (IEC61000-4-2, Contact Discharge) ±15 kV (IEC61000-4-2, Air-Gap Discharge) TPT3232E 3V to 5.5V, 250kbps RS-232 Transceivers.
