TPT1051HV, TPT1051H Fault Protected High-Speed CAN FD Transceiver

TPT1051HV Description

TPT1051H, TPT1051HV Fault Protected High-Speed CAN FD Transceiver with Silent Mode .
The TPT1051 is a CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard.

TPT1051HV Features

* Meets the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards
* Supports CAN FD and Data Rating up to 5 Mbps
* Short Propagation Delay Times and Fast Loop Times
* 5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface

TPT1051HV Applications

* All Devices Supporting Highly Loaded CAN Networks
* Field Industrial Automation, Sensor and Driver Systems
* Building, Security Control Systems
* Energy Storage Systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPT1051HV, TPT1051H. Please refer to the document for exact specifications by model.

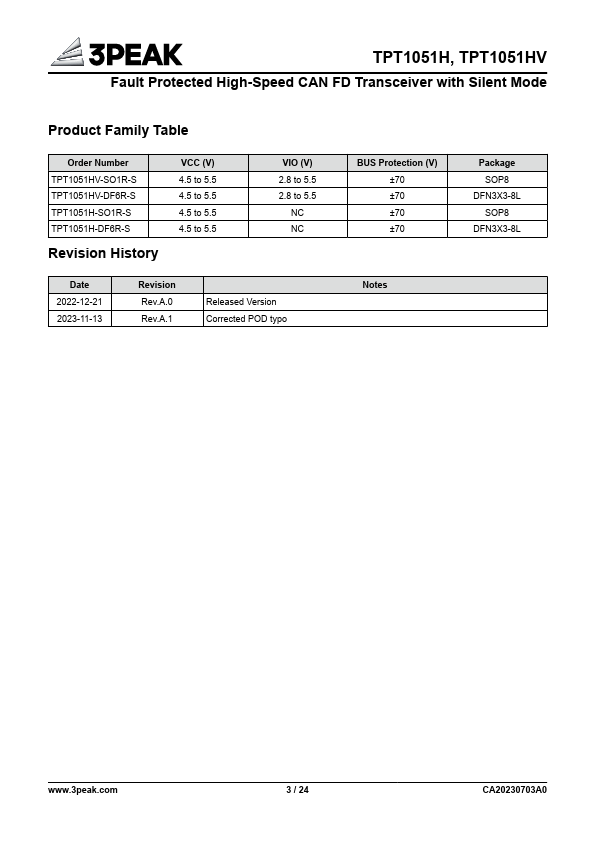

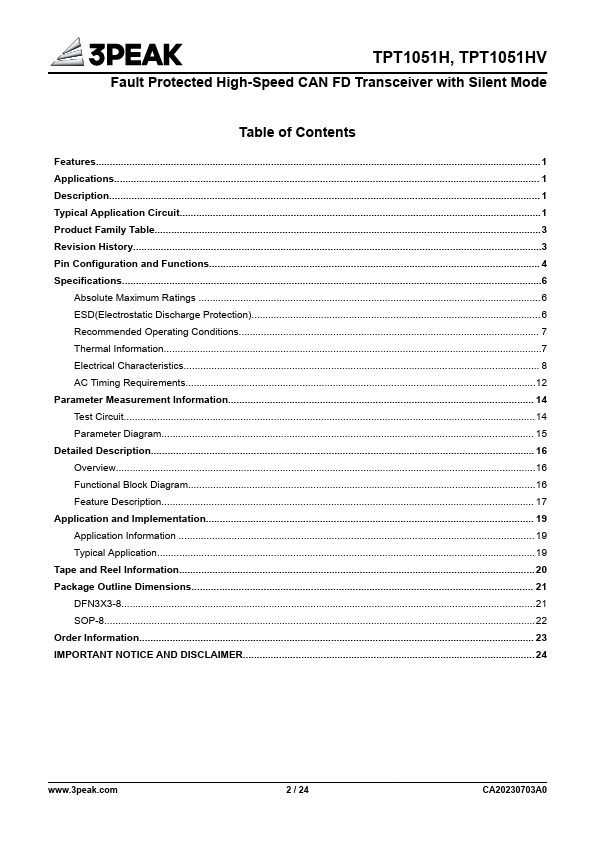

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT1051HV, TPT1051H
Manufacturer
3PEAK
File Size
1.18 MB
Datasheet
TPT1051H-3PEAK.pdf
Description
Fault Protected High-Speed CAN FD Transceiver
Note
This datasheet PDF includes multiple part numbers: TPT1051HV, TPT1051H.
Please refer to the document for exact specifications by model.
